Thai Yazaki Electric Wire

60227 IEC 01 THW

450/750 V 70°C SOLID AND STRANDED CONDUCTOR PVC INSULATED, SINGLE CORE

DOWNLOAD FILE

CONDUCTOR

Solid and stranded annealed copper Size

INSULATION

Polyvinyl chloride (PVC/C)

CORE IDENTIFICATION

Single – core : Any color

CLASSIFICATION

Maximum conductor temperature 70°C

Circuit voltage not exceeding 450/750 Volts

RATED VOLTAGE

450 Volts between Line to Earth

750 Volts between Line to Line

TESTING VOLTAGE

2,500 Volts

REFERENCE STANDARD

TIS 11 Part 3-2553, Table 1

APPLICATION

Building wiring for installation on insulator or in raceway dry location

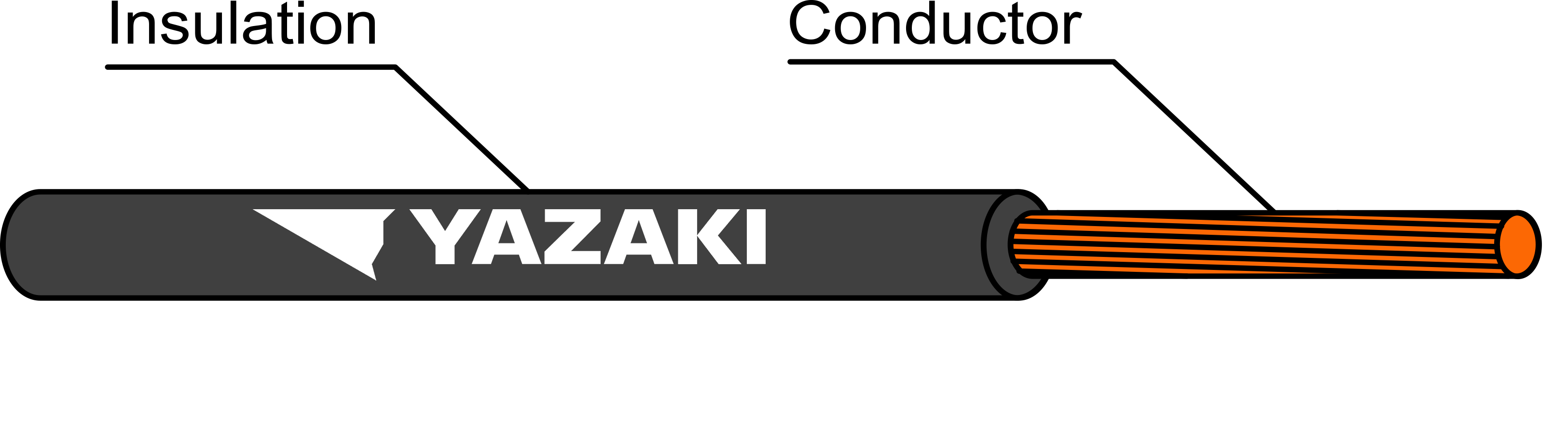

YK 60227 IEC 01 THW

450/750 V 70°C STRANDED CONDUCTOR PVC INSULATED SUPER SOFT SINGLE CORE

DOWNLOAD FILE

CONDUCTOR

Stranded annealed copper wire

INSULATION

Polyvinyl chloride (PVC/C)

CORE IDENTIFICATION

Single – cores : Any color

CLASSIFICATION

Maximum conductor temperature 70°C

Circuit voltage not exceeding 450/750 Volts

RATED VOLTAGE

450 Volts between Line to Earth

750 Volts between Line to Line

TESTING VOLTAGE

2,500 Volts

REFERENCE STANDARD

TIS 11 Part 3-2553, Table 1

APPLICATION

Building wiring for installation on insulator or in raceway dry location

60227 IEC 02 THW (f)

450/750 V 70°C FLEXIBLE CONDUCTOR PVC INSULATED , SINGLE CORE

DOWNLOAD FILE

CONDUCTOR

Flexible annealed copper wire

INSULATION

Polyvinyl chloride (PVC/C)

CORE IDENTIFICATION

Single – core : Any color

CLASSIFICATION

Maximum conductor temperature 70°C

Circuit voltage not exceeding 450/750 Volts

RATED VOLTAGE

450 Volts between Line to Earth

750 Volts between Line to Line

TESTING VOLTAGE

2,500 Volts

REFERENCE STANDARD

TIS 11 Part 3-2553, Table 3

APPLICATION

Building wiring for installation on insulator or in raceway dry location

60227 IEC 05 IV

300/500 V 70°C SOLID CONDUCTOR PVC INSULATED, SINGLE CORE

DOWNLOAD FILE

CONDUCTOR

Solid annealed copper wire

INSULATION

Polyvinyl chloride (PVC/C)

CORE IDENTIFICATION

Single – core : Any color

CLASSIFICATION

Maximum conductor temperature 70°C

Circuit voltage not exceeding 300/500 Volts

RATED VOLTAGE

300 Volts between Line to Earth

500 Volts between Line to Line

TESTING VOLTAGE

2,000 Volts

REFERENCE STANDARD

TIS 11 Part 3-2553, Table 5

APPLICATION

Building wiring for installation on insulator or in raceway dry location

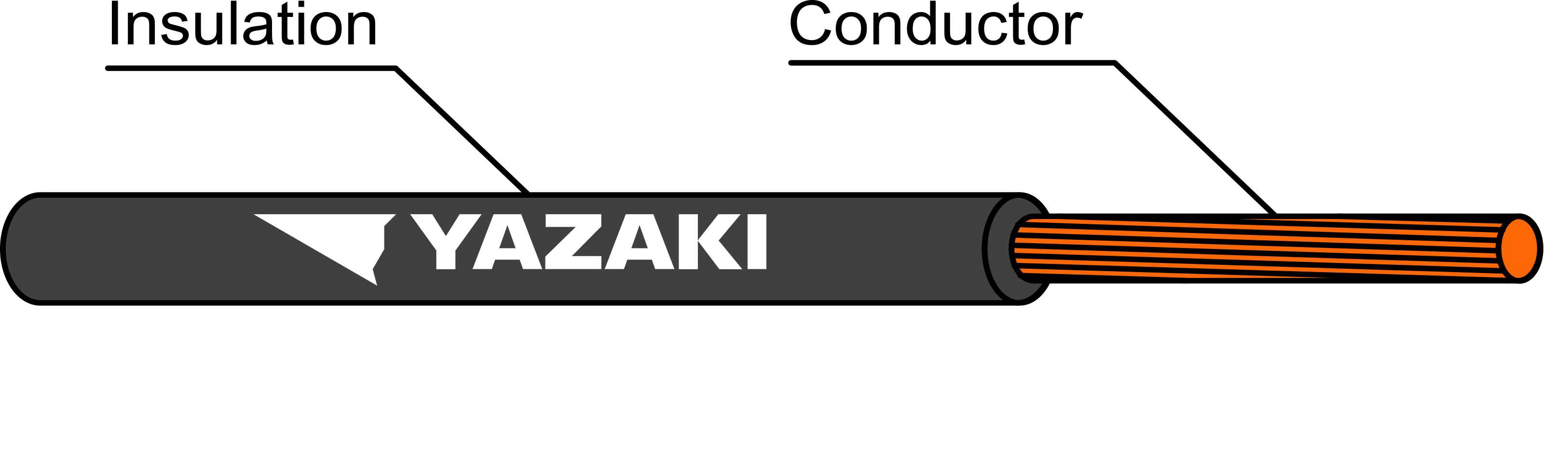

60227 IEC 06 IV (f)

300/500 V 70°C FLEXIBLE CONDUCTOR PVC INSULATED, SINGLE CORE

DOWNLOAD FILE

CONDUCTOR

Flexible annealed copper wire

INSULATION

Polyvinyl chloride (PVC/C)

CORE IDENTIFICATION

Single – core : Any color

CLASSIFICATION

Maximum conductor temperature 70°C

Circuit voltage not exceeding 300/500 Volts

RATED VOLTAGE

300 Volts between Line to Earth

500 Volts between Line to Line

TESTING VOLTAGE

2,000 Volts

REFERENCE STANDARD

TIS 11 Part 3-2553, Table 7

APPLICATION

Building wiring for installation on insulator or in raceway dry location

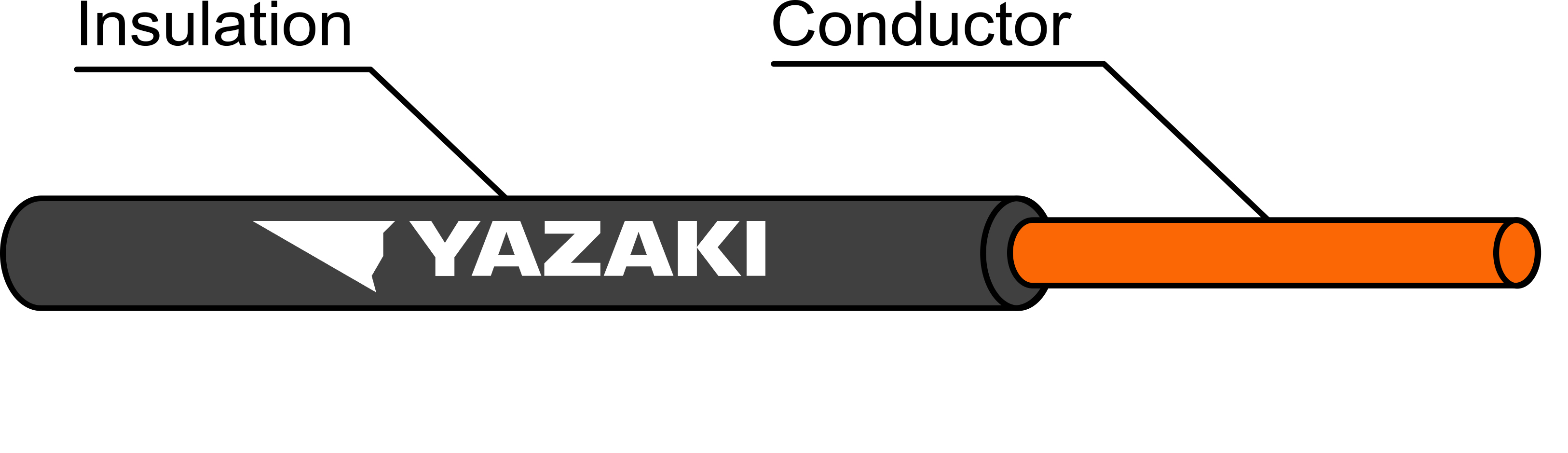

60227 IEC 07 HIV

300/500 V 90°C SOLID CONDUCTOR PVC INSULATED, SINGLE CORE

DOWNLOAD FILE

CONDUCTOR

Solid annealed copper

INSULATION

Polyvinyl chloride (PVC/E)

CORE IDENTIFICATION

Single – core : Any color

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 300/500 Volts

RATED VOLTAGE

300 Volts between Line to Earth

500 Volts between Line to Line

TESTING VOLTAGE

2,000 Volts

REFERENCE STANDARD

TIS 11 Part 3-2553, Table 9

APPLICATION

Building wiring for installation on insulator or in raceway dry location

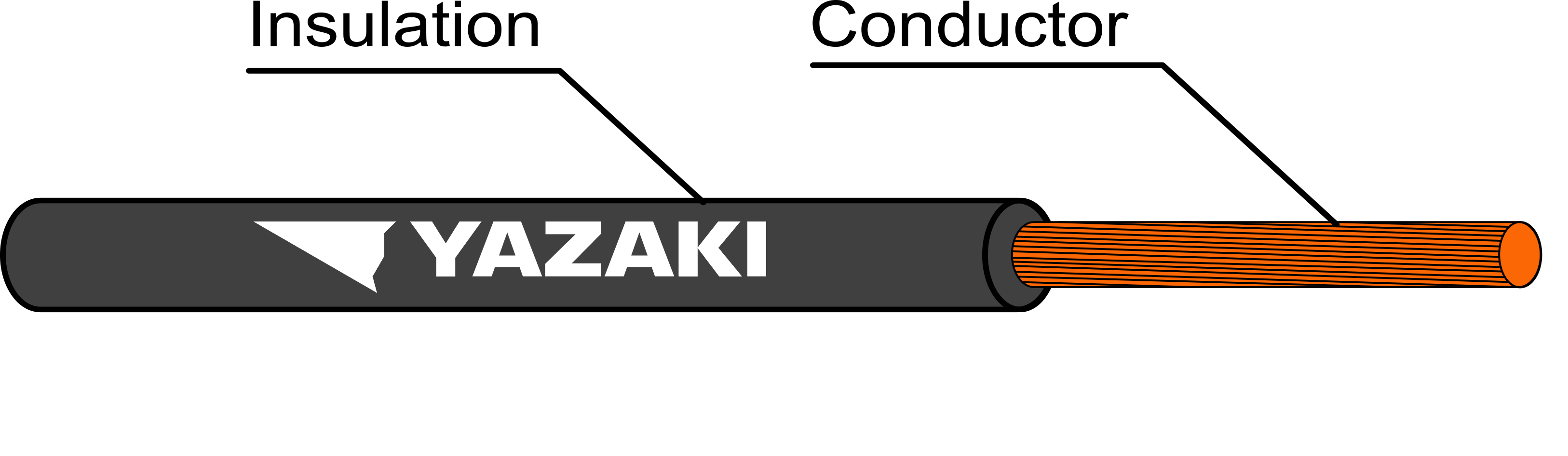

60227 IEC 08 HIV (f)

300/500 V 90°C FLEXIBLE CONDUCTOR PVC INSULATED, SINGLE CORE

DOWNLOAD FILE

CONDUCTOR

Flexible annealed copper wire

INSULATION

Polyvinyl chloride (PVC/E)

CORE IDENTIFICATION

Single – core : Any color

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 300/500 Volts

RATED VOLTAGE

300 Volts between Line to Earth

500 Volts between Line to Line

TESTING VOLTAGE

2,000 Volts

REFERENCE STANDARD

TIS 11 Part 3-2553, Table 11

APPLICATION

Building wiring for installation on insulator or in raceway dry location

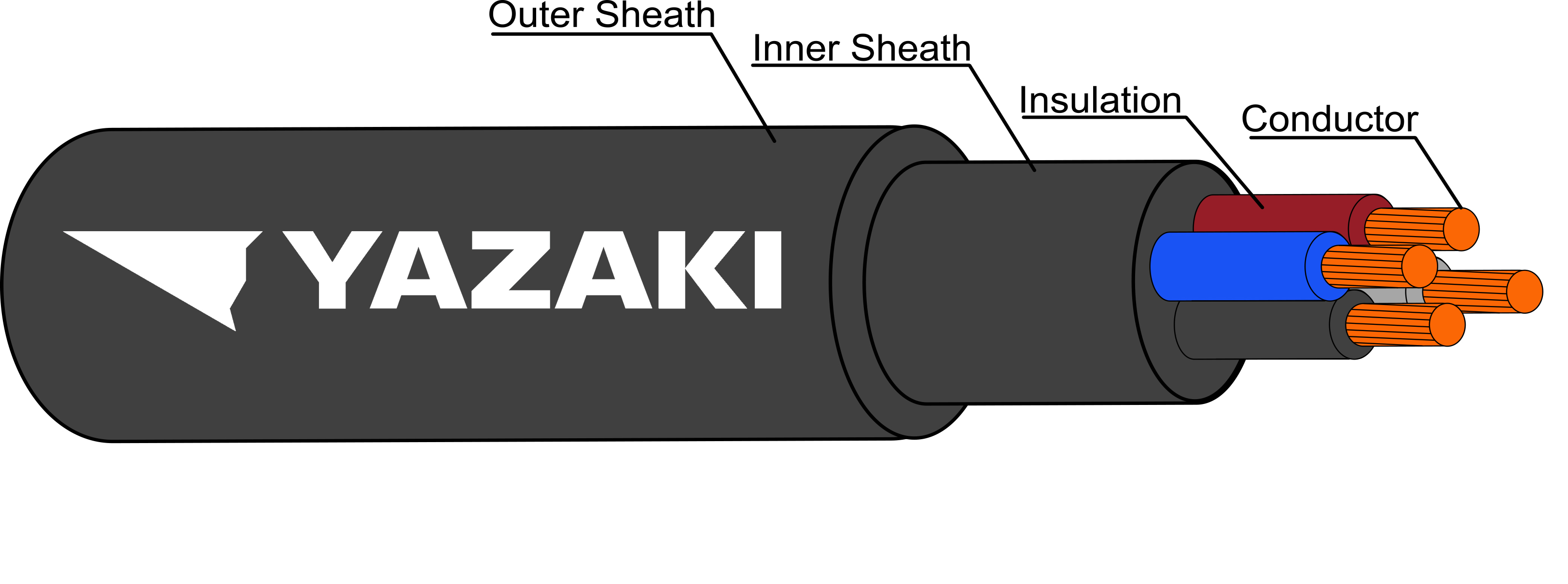

60227 IEC 10

300/500 V 70°C SOLID AND STRANDED CONDUCTOR PVC AND DOUBLE INSULATED

DOWNLOAD FILE

CONDUCTOR

Solid and stranded annealed copper

INSULATION

Polyvinyl chloride (PVC/C)

CORE IDENTIFICATION

2 Cores : Blue and Brown

3 Cores : Brown, Black and Grey

or Blue, Brown and Green/Yellow

4 Cores : Blue, Brown, Black and Grey

or Brown, Black, Grey and Green/Yellow

5 Cores : Blue, Brown, Black, Grey and Black

or Blue, Brown, Black, Grey and Green/Yellow

OUTER SHEATH

Black polyvinyl chloride (PVC/ST4)

CLASSIFICATION

Maximum conductor temperature 70°C

Circuit voltage not exceeding 300/500 Volts

RATED VOLTAGE

300 Volts between Line to Earth

500 Volts between Line to Line

TESTING VOLTAGE

2,000 Volts

REFERENCE STANDARD

TIS 11 Part 4-2553, Table 1

APPLICATION

For installation exposed or in raceway, wet or dry location

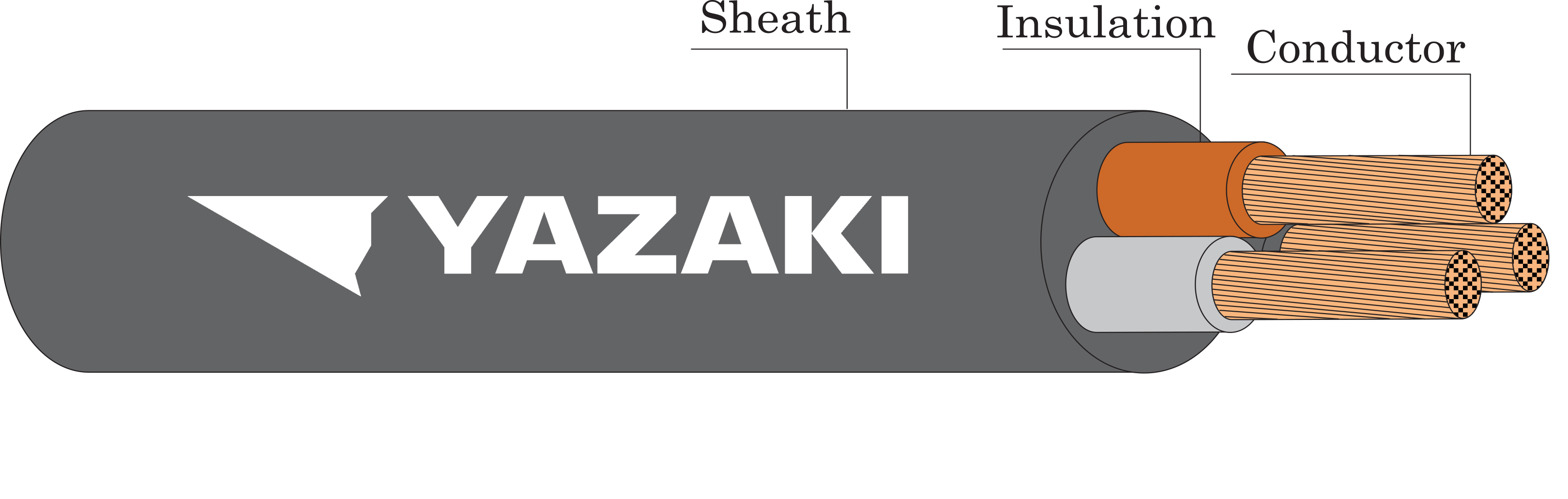

60227 IEC 52

300/300 V 70°C FLEXIBLE CONDUCTOR PVC INSULATED AND SHEATHED, ROUND TYPE

DOWNLOAD FILE

CONDUCTOR

Flexible annealed copper wires

INSULATION

Polyvinyl chloride (PVC/D)

CORE IDENTIFICATION

2 Cores : Blue and Brown

3 Cores : Brown, black and grey

or Blue, Brown and Green/Yellow

OUTER SHEATH

Black Polyvinyl chloride (PVC/ST5)

CLASSIFICATION

Maximum conductor temperature 70°C

Circuit voltage not exceeding 300/300 Volts

RATED VOLTAGE

300 Volts between Line to Earth

300 Volts between Line to Line

TESTING VOLTAGE

2,000 Volts

REFERENCE STANDARD

TIS 11 Part 5-2553, Table 7

APPLICATION

For household appliances, electrical equipment and electrical illumination

60227 IEC 52 VKF

300/300 V 70°C FLEXIBLE CONDUCTOR PVC INSULATED AND SHEATHED, FLAT TYPE

DOWNLOAD FILE

CONDUCTOR

Flexible annealed copper

INSULATION

Polyvinyl chloride (PVC/D)

CORE IDENTIFICATION

2 Cores : Blue and Brown

OUTER SHEATH

Black Polyvinyl chloride (PVC/ST5)

CLASSIFICATION

Maximum conductor temperature 70°C

Circuit voltage not exceeding 300/300 Volts

RATED VOLTAGE

300 Volts between Line to Earth

300 Volts between Line to Line

TESTING VOLTAGE

2,000 Volts

REFERENCE STANDARD

TIS 11 Part 5-2553, Table 7

APPLICATION

For household appliances, electrical equipment and electrical illumination

60227 IEC 53

300/500 V 70°C FLEXIBLE CONDUCTOR PVC INSULATED AND SHEATHED, ROUND TYPE

DOWNLOAD FILE

CONDUCTOR

Flexible annealed copper

INSULATION

Polyvinyl chloride (PVC/D)

CORE IDENTIFICATION

2 Cores : Blue and Brown

3 Cores : Brown, black and grey

or Blue, Brown and Green/Yellow

4 Cores : Brown, Black, Grey and Blue

or Brown, Black, Grey and Green/Yellow

5 Cores : Blue, Brown, Black, Grey and Black

or Blue, Brown, Black, Grey and Green/Yellow

OUTER SHEATH

Black polyvinyl chloride (PVC/ST5)

CLASSIFICATION

Maximum conductor temperature 70°C

Circuit voltage not exceeding 300/500 Volts

RATED VOLTAGE

300 Volts between Line to Earth

500 Volts between Line to Line

TESTING VOLTAGE

2,000 Volts

REFERENCE STANDARD

TIS 11 Part 5-2553, Table 9

APPLICATION

For household appliances, electrical equipment and electrical illumination

60227 IEC 53 VKF

300/500 V 70°C FLEXIBLE CONDUCTOR PVC INSULATED AND SHEATHED, FLAT TYPE

DOWNLOAD FILE

CONDUCTOR

Flexible annealed copper

INSULATION

Polyvinyl chloride (PVC/D)

CORE IDENTIFICATION

2 Cores : Blue and Brown

OUTER SHEATH

Black Polyvinyl chloride (PVC/ST5)

CLASSIFICATION

Maximum conductor temperature 70°C

Circuit voltage not exceeding 300/500 Volts

RATED VOLTAGE

300 Volts between Line to Earth

500 Volts between Line to Line

TESTING VOLTAGE

2,000 Volts

REFERENCE STANDARD

TIS 11 Part 5-2553, Table 9

APPLICATION

For household appliances, electrical equipment and electrical illumination

60227 IEC 56

300/300 V 90°C FLEXIBLE CONDUCTOR PVC INSULATED AND SHEATHED, ROUND TYPE

DOWNLOAD FILE

CONDUCTOR

Flexible annealed copper

INSULATION

Polyvinyl chloride (PVC/E)

CORE IDENTIFICATION

2 Cores : Blue and Brown

3 Cores : Brown, black and grey

or Blue, Brown and Green/Yellow

OUTER SHEATH

Black polyvinyl chloride (PVC/ST10)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 300/300 Volts

RATED VOLTAGE

300 Volts between Line to Earth

300 Volts between Line to Line

TESTING VOLTAGE

2,000 Volts

REFERENCE STANDARD

TIS 11 Part 5-2553, Table 11

APPLICATION

For household appliances, electrical equipment and electrical illumination

60227 IEC 56 HVKF

300/300 V 90°C FLEXIBLE CONDUCTOR PVC INSULATED AND SHEATHED, FLAT TYPE

DOWNLOAD FILE

CONDUCTOR

Flexible annealed copper

INSULATION

Polyvinyl chloride (PVC/E)

CORE IDENTIFICATION

2 Cores : Blue and Brown

OUTER SHEATH

Black polyvinyl chloride (PVC/ST10)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 300/300 Volts

RATED VOLTAGE

300 Volts between Line to Earth

300 Volts between Line to Line

TESTING VOLTAGE

2,000 Volts

REFERENCE STANDARD

TIS 11 Part 5-2553, Table 11

APPLICATION

For household appliances, electrical equipment and electrical illumination

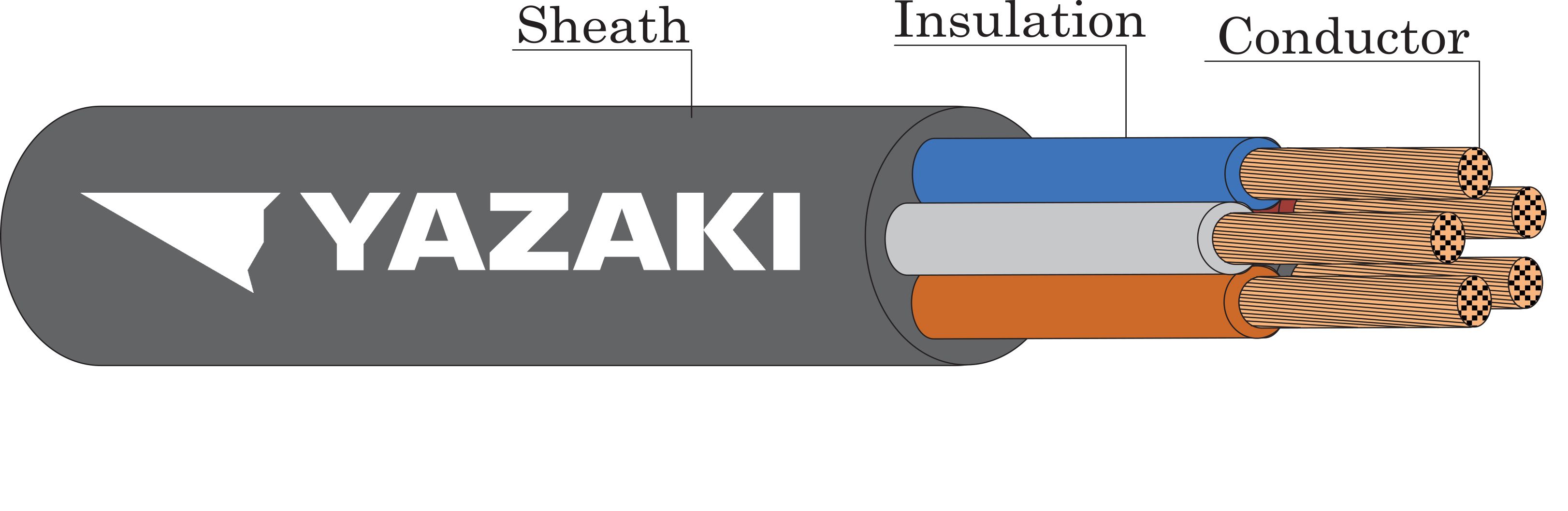

60227 IEC 57

300/500 V 90°C FLEXIBLE CONDUCTOR PVC INSULATED AND SHEATHED, ROUND TYPE

DOWNLOAD FILE

CONDUCTOR

Flexible annealed copper

INSULATION

Polyvinyl chloride (PVC/E)

CORE IDENTIFICATION

2 Cores : Blue and Brown

3 Cores : Brown, black and grey

or Blue, Brown and Green/Yellow

4 Cores : Brown, Black, Grey and Blue

or Brown, Black, Grey and Green/Yellow

5 Cores : Blue, Brown, Black, Grey and Black

or Blue, Brown, Black, Grey and Green/Yellow

OUTER SHEATH

Black polyvinyl chloride (PVC/ST10)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 300/500 Volts

RATED VOLTAGE

300 Volts between Line to Earth

500 Volts between Line to Line

TESTING VOLTAGE

2,000 Volts

REFERENCE STANDARD

TIS 11 Part 5-2553, Table 13

APPLICATION

For household appliances, electrical equipment and electrical illumination

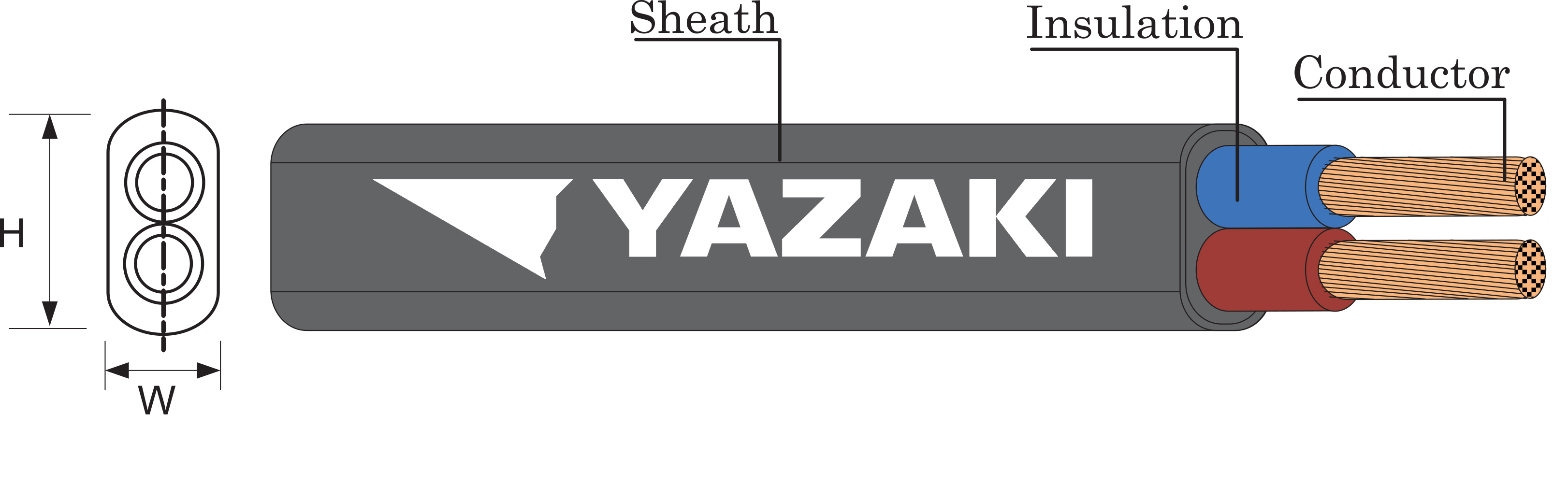

60227 IEC 57 HVKF

300/500 V 90°C FLEXIBLE CONDUCTOR PVC INSULATED AND SHEATHED, FLAT TYPE

DOWNLOAD FILE

CONDUCTOR

Flexible annealed copper

INSULATION

Polyvinyl chloride (PVC/E)

CORE IDENTIFICATION

2 Cores : Blue and Brown

OUTER SHEATH

Black polyvinyl chloride (PVC/ST10)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 300/500 Volts

RATED VOLTAGE

300 Volts between Line to Earth

500 Volts between Line to Line

TESTING VOLTAGE

2,000 Volts

REFERENCE STANDARD

TIS 11 Part 5-2553, Table 13

APPLICATION

For household appliances, electrical equipment and electrical illumination

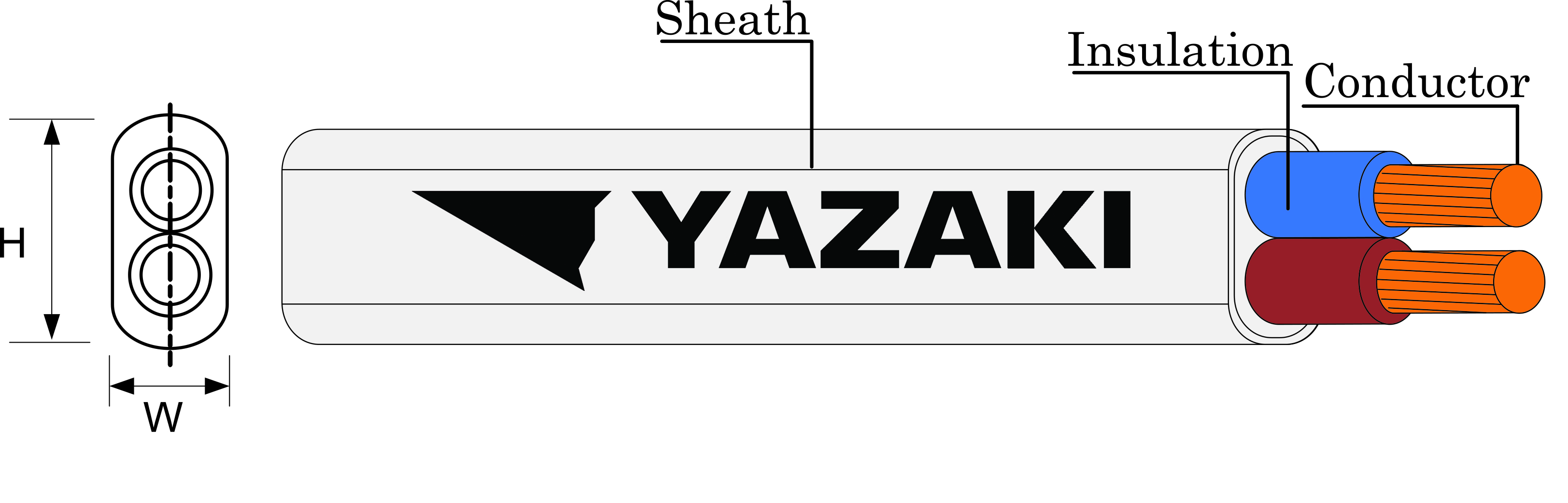

VAF

300/500 V 70°C SOLID AND STRANDED CONDUCTOR PVC INSULATED AND SHEATHED, FLAT TYPE

DOWNLOAD FILE

CONDUCTOR

Solid and stranded annealed copper

INSULATION

Polyvinyl chloride (PVC/C)

CORE IDENTIFICATION

2 Core : Blue and Brown

OUTER SHEATH

White polyvinyl chloride (PVC/ST4)

CLASSIFICATION

Maximum conductor temperature 70°C

Circuit voltage not exceeding 300/500 Volts

RATED VOLTAGE

300 Volts between Line to Earth

500 Volts between Line to Line

TESTING VOLTAGE

2,000 Volts

REFERENCE STANDARD

TIS 11 Part 101-2559, Table 1

APPLICATION

Building wiring for surface or above ceiling wiring or direct embeded in plaster

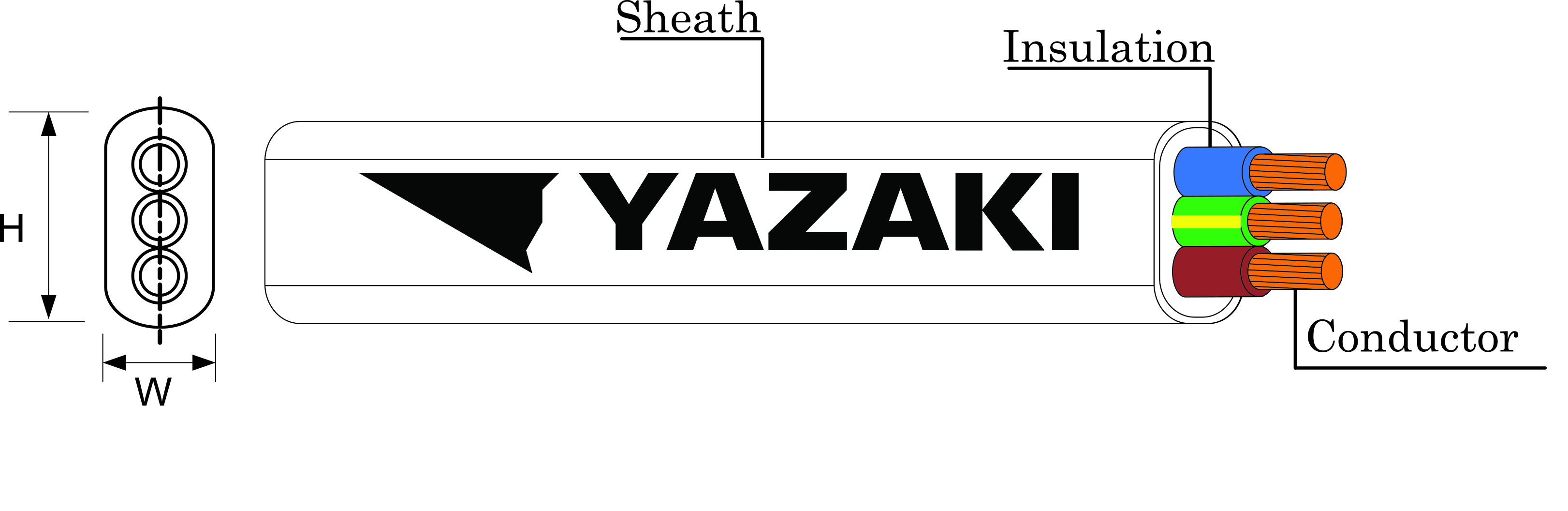

VAF-G

300/500 V 70°C SOLID AND STRANDED CONDUCTOR PVC INSULATED AND SHEATHED WITH GROUND, FLAT TYPE

DOWNLOAD FILE

CONDUCTOR

Solid and stranded annealed copper

INSULATION

Polyvinyl chloride (PVC/C)

CORE IDENTIFICATION

2 Core +Ground : Blue, Brown and Green/Yellow

OUTER SHEATH

White polyvinyl chloride (PVC/ST4)

CLASSIFICATION

Maximum conductor temperature 70°C

Circuit voltage not exceeding 300/500 Volts

RATED VOLTAGE

300 Volts between Line to Earth

500 Volts between Line to Line

TESTING VOLTAGE

2,000 Volts

REFERENCE STANDARD

TIS 11 Part 101-2559, Table 1

APPLICATION

Building wiring for surface or above ceiling wiring or direct embeded in plaster

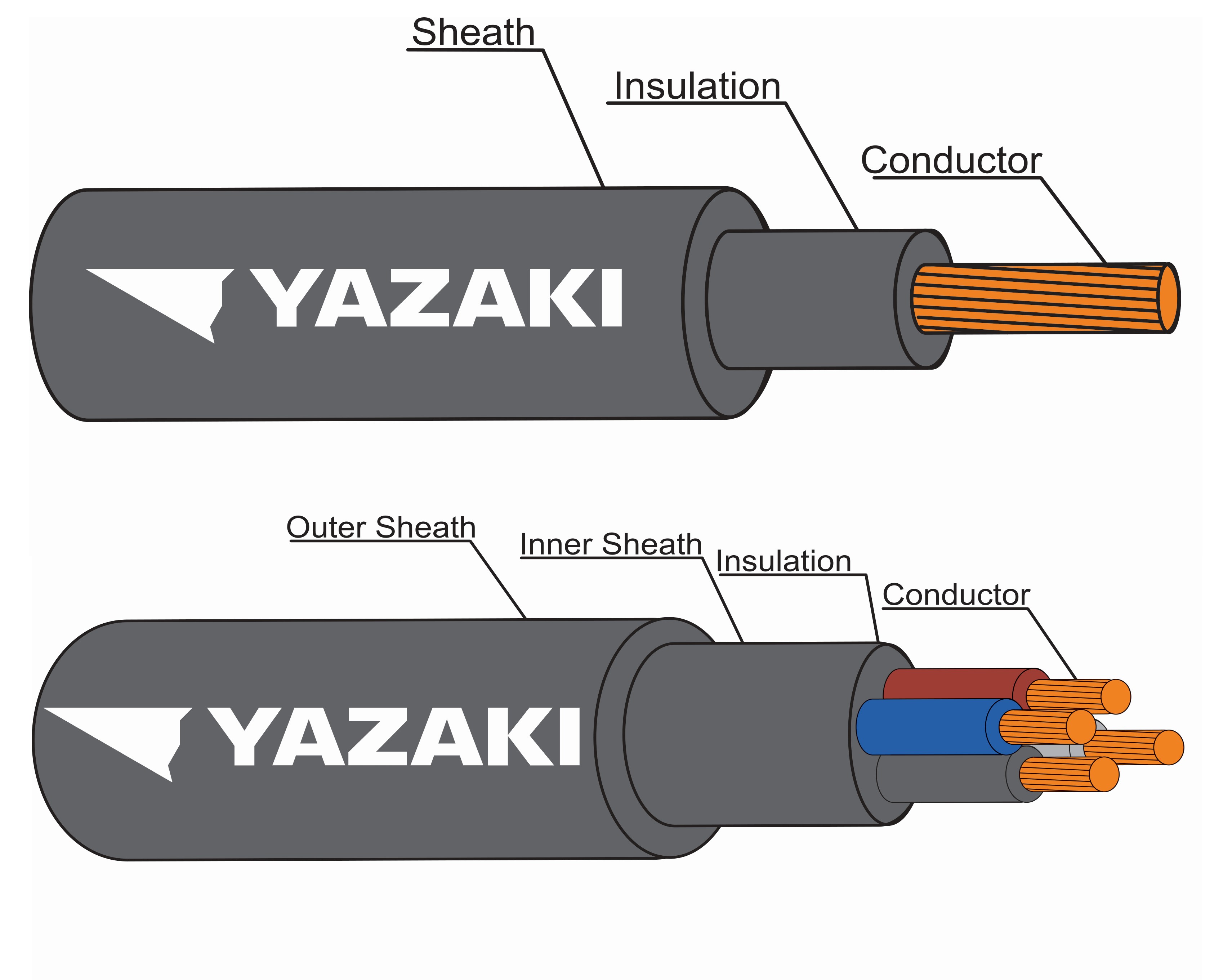

NYY

450/750 V 70°C SOLID AND STRANDED CONDUCTOR PVC INSULATED AND DOUBLE SHEATHED

DOWNLOAD FILE

CONDUCTOR

Solid and stranded annealed copper

INSULATION

Polyvinyl chloride (PVC/C)

CORE IDENTIFICATION

Single-core : Black

2 Core : Blue and Brown

3 Core : Brown, Black and Grey

4 Core : Blue, Brown, Black and Grey

OUTER SHEATH

Black polyvinyl chloride (PVC/ST4)

CLASSIFICATION

Maximum conductor temperature 70°C

Circuit voltage not exceeding 450/750 Volts

RATED VOLTAGE

450 Volts between Line to Earth

750 Volts between Line to Line

TESTING VOLTAGE

2,500 Volts

REFERENCE STANDARD

TIS 11 Part 101-2559, Table 3

TIS 11 Part 101-2559, Table 4

APPLICATION

For installation exposed or in raceway, wet or dry location, or direct burial in ground

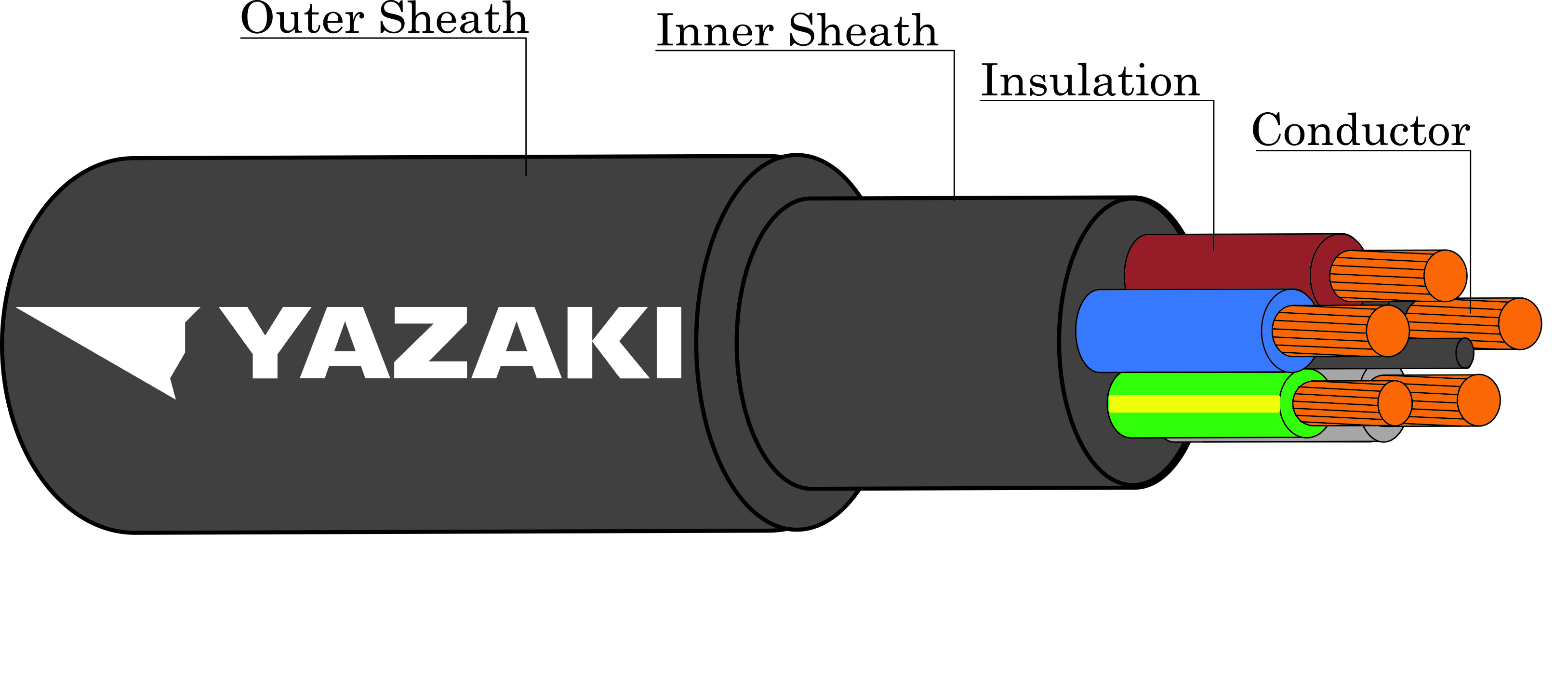

NYY - G

450/750 V 70°C STRANDED CONDUCTOR PVC INSULATED AND DOUBLE SHEATHED WITH GROUND

DOWNLOAD FILE

CONDUCTOR

Solid and stranded annealed copper

INSULATION

Polyvinyl chloride (PVC/C)

CORE IDENTIFICATION

2 Core + Ground : Blue and Brown + Green/Yellow

3 Core + Ground: Brown, Black and Grey + Green/Yellow

4 Core + Ground : Blue, Brown, Black and Grey + Green/Yellow

OUTER SHEATH

Black polyvinyl chloride (PVC/ST4)

CLASSIFICATION

Maximum conductor temperature 70°C

Circuit voltage not exceeding 450/750 Volts

RATED VOLTAGE

450 Volts between Line to Earth

750 Volts between Line to Line

TESTING VOLTAGE

2,500 Volts

REFERENCE STANDARD

TIS 11 Part 101-2559, Table 5

APPLICATION

For installation exposed or in raceway, wet or dry location, or direct burial in ground

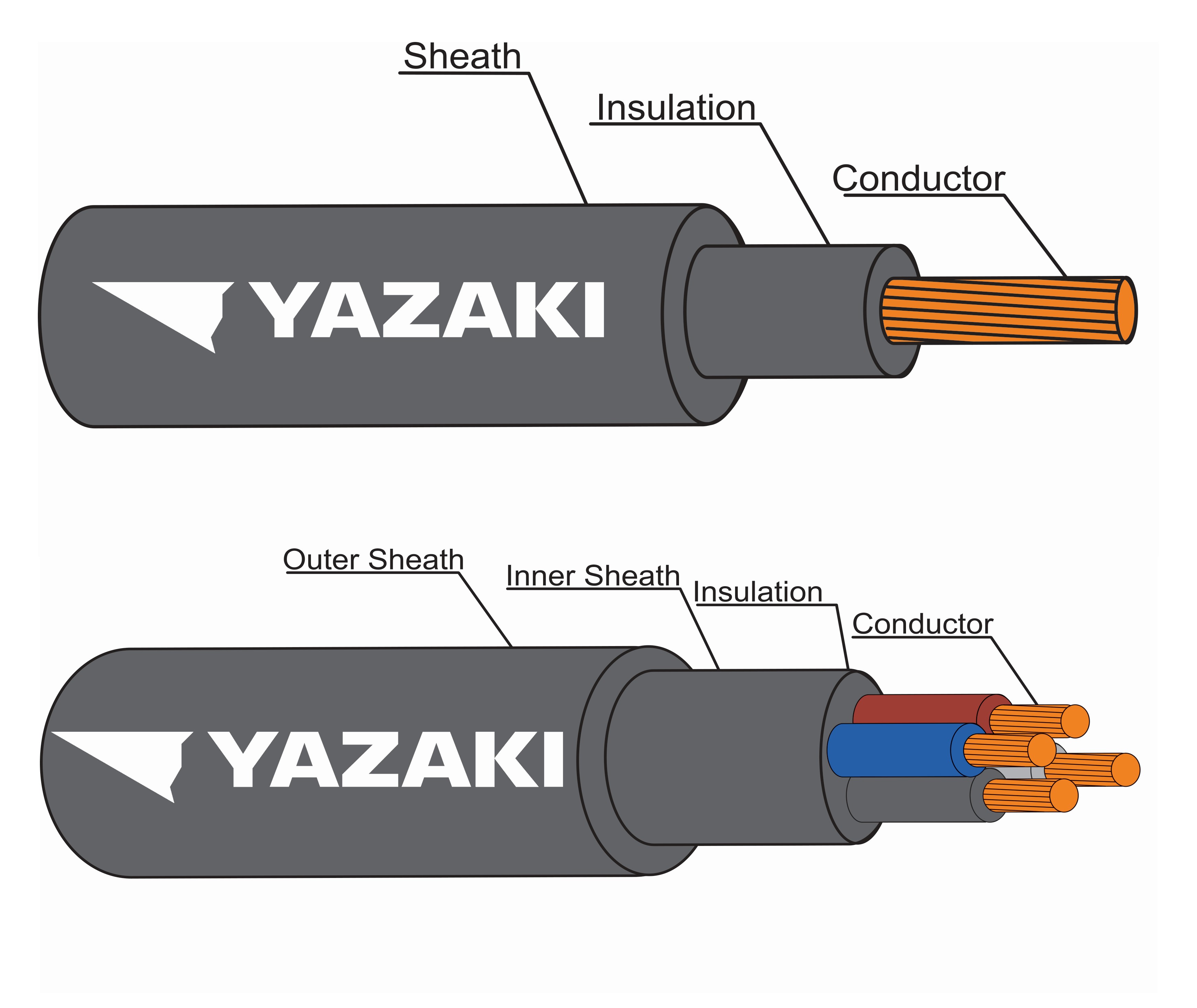

YK NYY

450/750 V 70°C STRANDED CONDUCTOR PVC INSULATED AND DOUBLE SHEATHED, SUPER SOFT POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Stranded annealed copper wire

INSULATION

Polyvinyl chloride (PVC/C)

CORE IDENTIFICATION

Single-core : Black

2 Core : Blue and Brown

3 Core : Brown, Black and Grey

4 Core : Blue, Brown, Black and Grey

INNER SHEATH

Black polyvinyl chloride (PVC)

OUTER SHEATH

Black polyvinyl chloride (PVC/ST4)

CLASSIFICATION

Maximum conductor temperature 70°C

Circuit voltage not exceeding 450/750 Volts

RATED VOLTAGE

450 Volts between Line to Earth

750 Volts between Line to Line

TESTING VOLTAGE

2,500 Volts

REFERENCE STANDARD

TIS 11 Part 101-2559, Table 4

APPLICATION

For installation exposed or in raceway, wet or dry location, or direct burial in ground

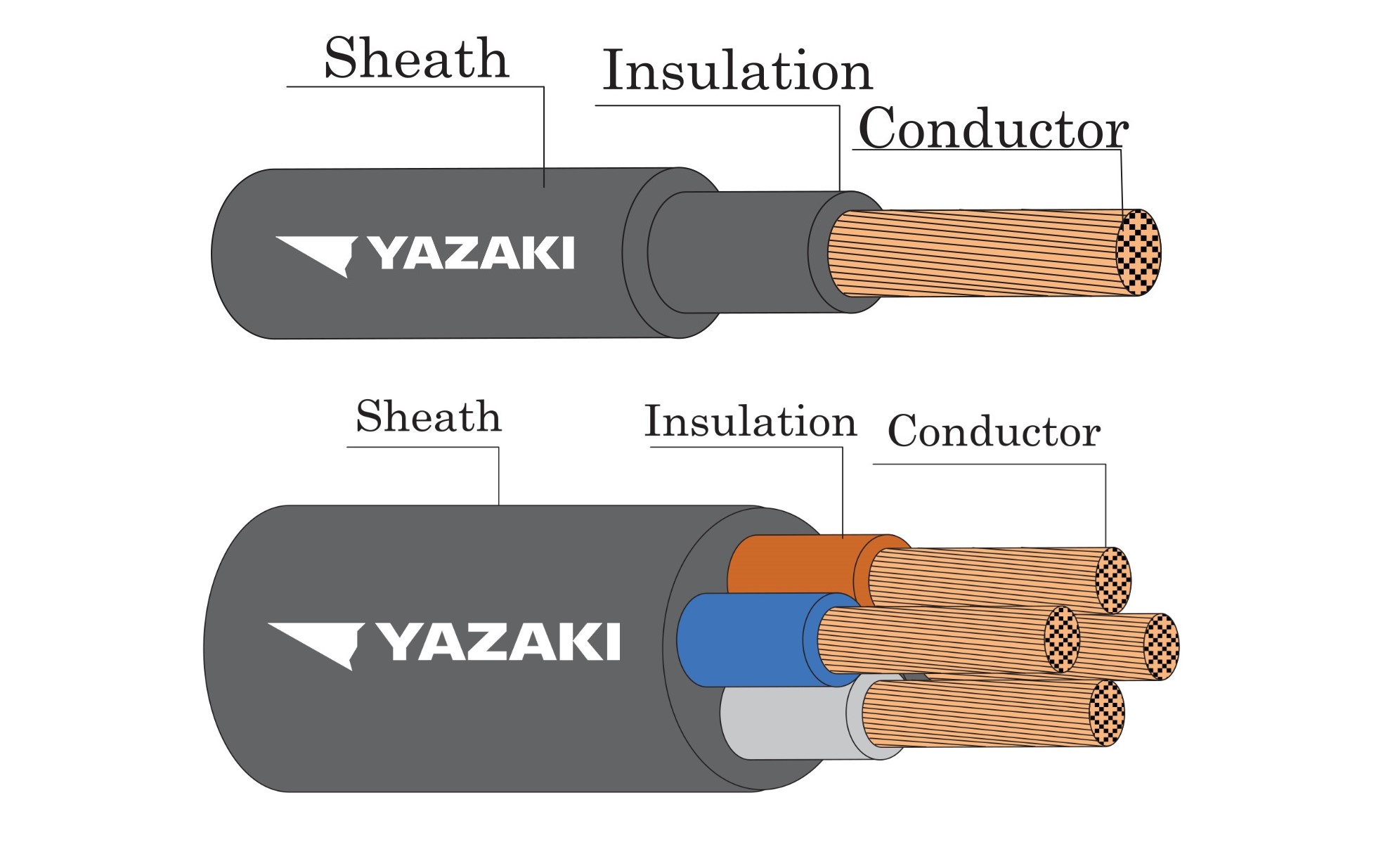

VCT

450/750 V 70°C FLEXIBLE CONDUCTOR PVC INSULATED AND SHEATHED, ROUND TYPE

DOWNLOAD FILE

CONDUCTOR

Flexible annealed copper

INSULATION

Polyvinyl chloride (PVC/D)

CORE IDENTIFICATION

Single-core : Black

2 Core : Blue and Brown

3 Core : Brown, Black and Grey

4 Core : Blue, Brown, Black and Grey

OUTER SHEATH

Black polyvinyl chloride (PVC/ST5)

CLASSIFICATION

Maximum conductor temperature 70°C

Circuit voltage not exceeding 450/750 Volts

RATED VOLTAGE

450 Volts between Line to Earth

750 Volts between Line to Line

TESTING VOLTAGE

2,500 Volts

REFERENCE STANDARD

TIS 11 Part 101-2559, Table 7

APPLICATION

For mobile-electrical equipment used in mines, factories, farm or household appliances. This cable is suitable for use in place where cable come in contact with oils

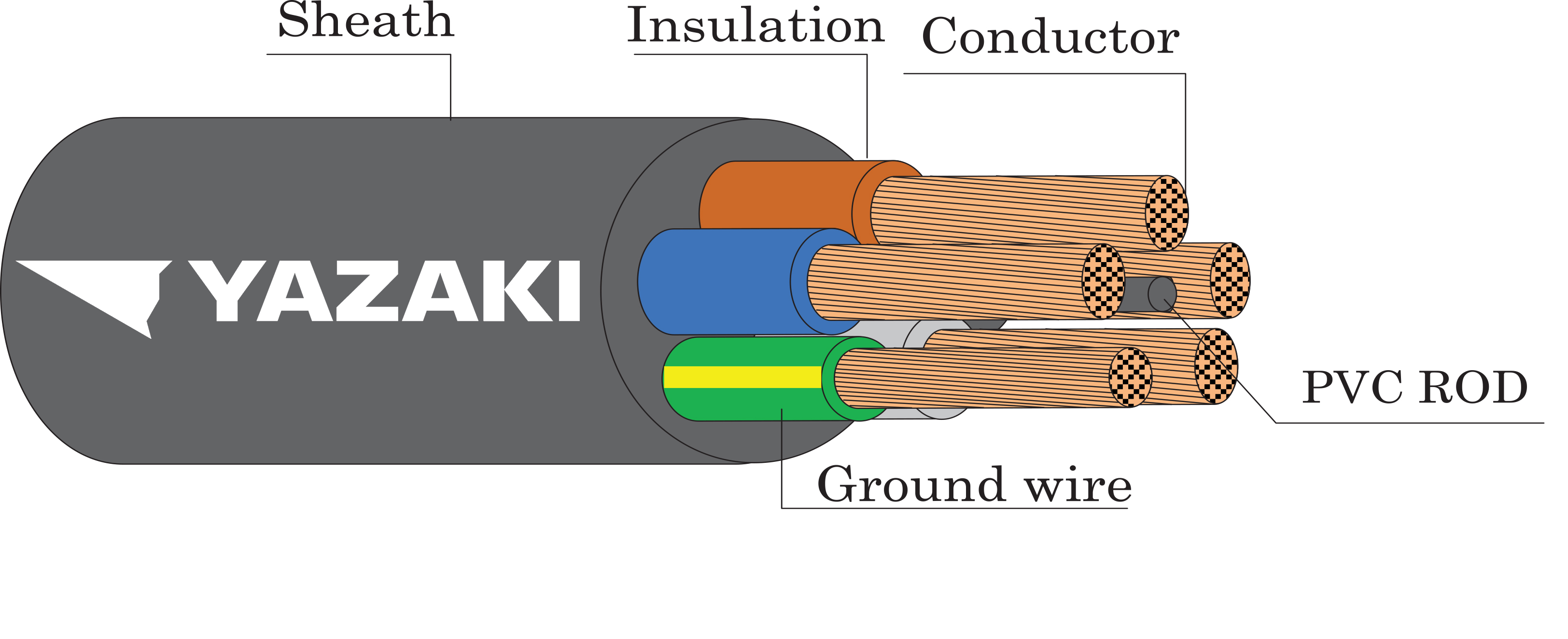

VCT -G

450/750 V 70°C FLEXIBLE CONDUCTOR PVC INSULATED AND SHEATHED WITH GOUND, ROUND TYPE

DOWNLOAD FILE

CONDUCTOR

Flexible annealed copper wire

INSULATION

Polyvinyl chloride (PVC/D)

CORE IDENTIFICATION

2 Core + Ground : Blue and Brown + Green/Yellow

3 Core + Ground: Brown, Black and Grey + Green/Yellow

4 Core + Ground : Blue, Brown, Black and Grey + Green/Yellow

OUTER SHEATH

Black polyvinyl chloride (PVC/ST5)

CLASSIFICATION

Maximum conductor temperature 70°C

Circuit voltage not exceeding 450/750 Volts

RATED VOLTAGE

450 Volts between Line to Earth

750 Volts between Line to Line

TESTING VOLTAGE

2,500 Volts

REFERENCE STANDARD

TIS 11 Part 101-2559, Table 8

APPLICATION

For mobile-electrical equipment used in mines, factories, farm or household appliances. This cable is suitable for use in place where cable come in contact with oils

FD-0.6/1KV-CV

0.6/1kV 90°C CROSS-LINKED POLYETHYLENE INSULATED PVC SHEATHED FLAME RETARDANT POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Non-compacted and compacted round annealed copper

INSULATION

Cross-linked Polyethylene (XLPE)

CORE IDENTIFICATION

Single-core : Natural (Translucent)

2 Core : Blue and Brown

3 Core : Brown, Black and Grey

4 Core : Blue, Brown, Black and Grey

Other colors are available on customer request

OUTER SHEATH

Black flame retardant polyvinyl chloride (PVC/ST2)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 Volts

REFERENCE STANDARD

IEC 60502-1, IEC 60228, IEC 60332-1, IEC 60332-3-24 (Cat.C)

APPLICATION

For installation exposed or in raceway, wet or dry location, or direct burial in ground

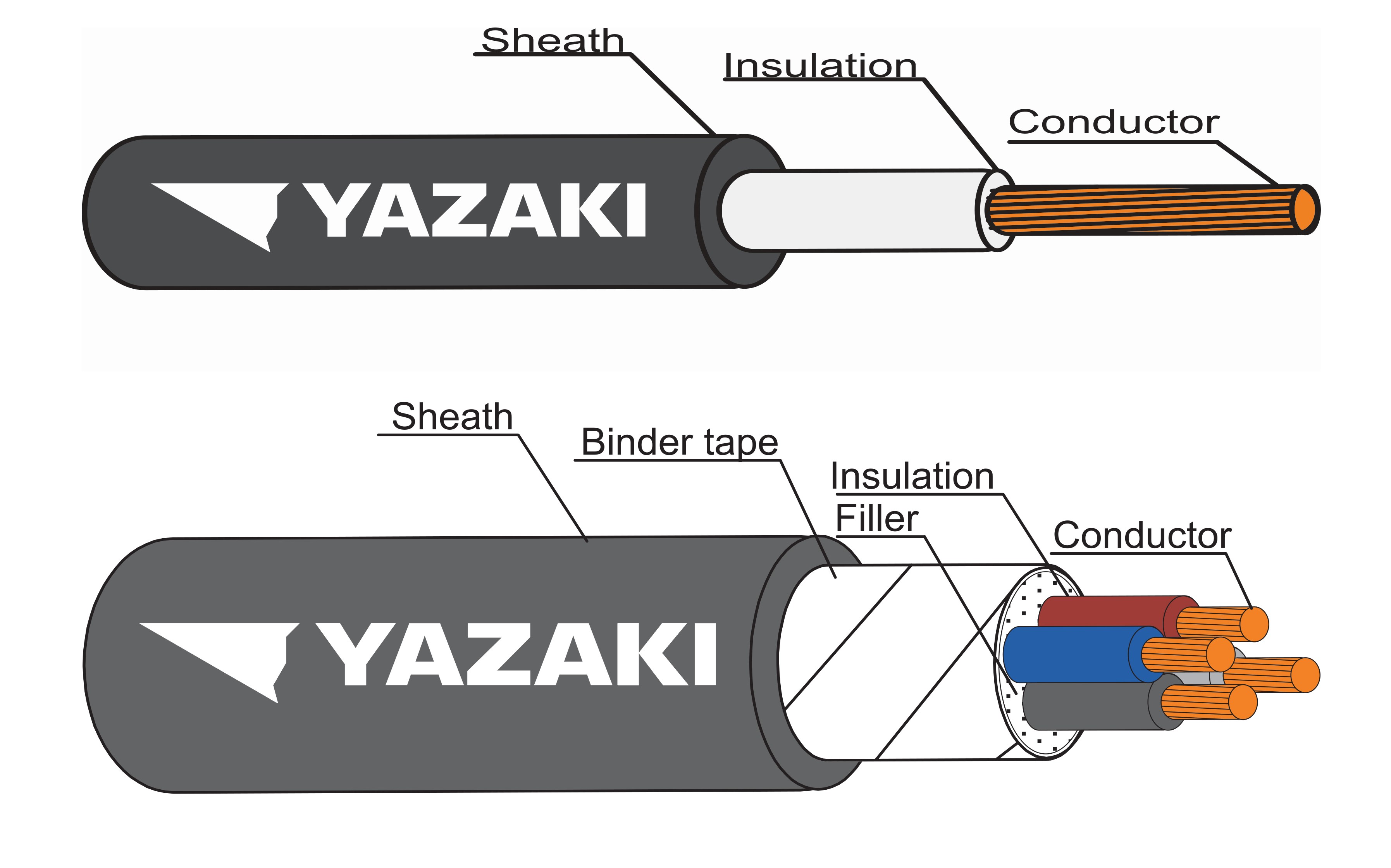

YK FD-0.6/1KV-CV

0.6/1 kV 90 °C CROSS-LINKED POLYETHYLENE INSULATED PVC SHEATHED PVC SHEATHED FLAME RETARDANT SUPER SOFT POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Non-compacted and compacted round annealed copper

INSULATION

Cross-linked Polyethylene (XLPE)

CORE IDENTIFICATION

Single-core : Natural (Translucent)

2 Core : Blue and Brown

3 Core : Brown, Black and Grey

4 Core : Blue, Brown, Black and Grey

Other colors are available on customer request

OUTER SHEATH

Black flame retardant polyvinyl chloride (PVC/ST2)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 Volts

REFERENCE STANDARD

IEC 60502-1, IEC 60228, IEC 60332-1, IEC 60332-3-24 (Cat.C)

APPLICATION

For installation exposed or in raceway, wet or dry location, or direct burial in ground

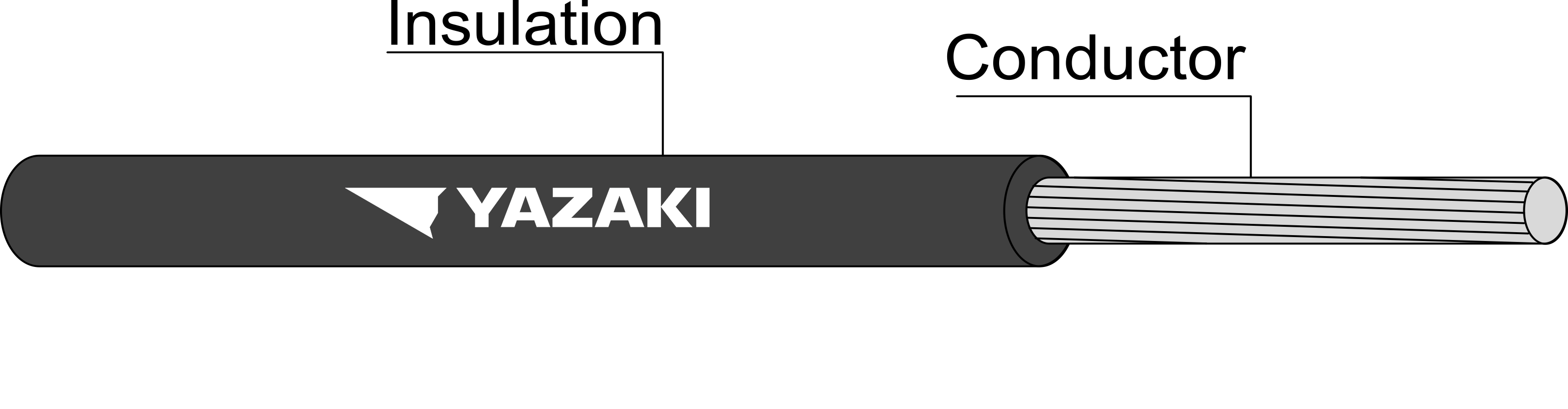

THWA

750 V 70°C ALUMINIUM CONDUCTOR PVC INSULATED, SINGLE CORE

DOWNLOAD FILE

CONDUCTOR

Solid and stranded hard drawn aluminium wires

INSULATION

Black polyvinyl chloride (PVC)

CLASSIFICATION

Maximum conductor temperature 70°C

Circuit voltage not exceeding 750 Volts

TESTING VOLTAGE

2,500 Volts

REFERENCE STANDARD

TIS 293-2541, Table 1

APPLICATION

For low voltage overhead distribution line

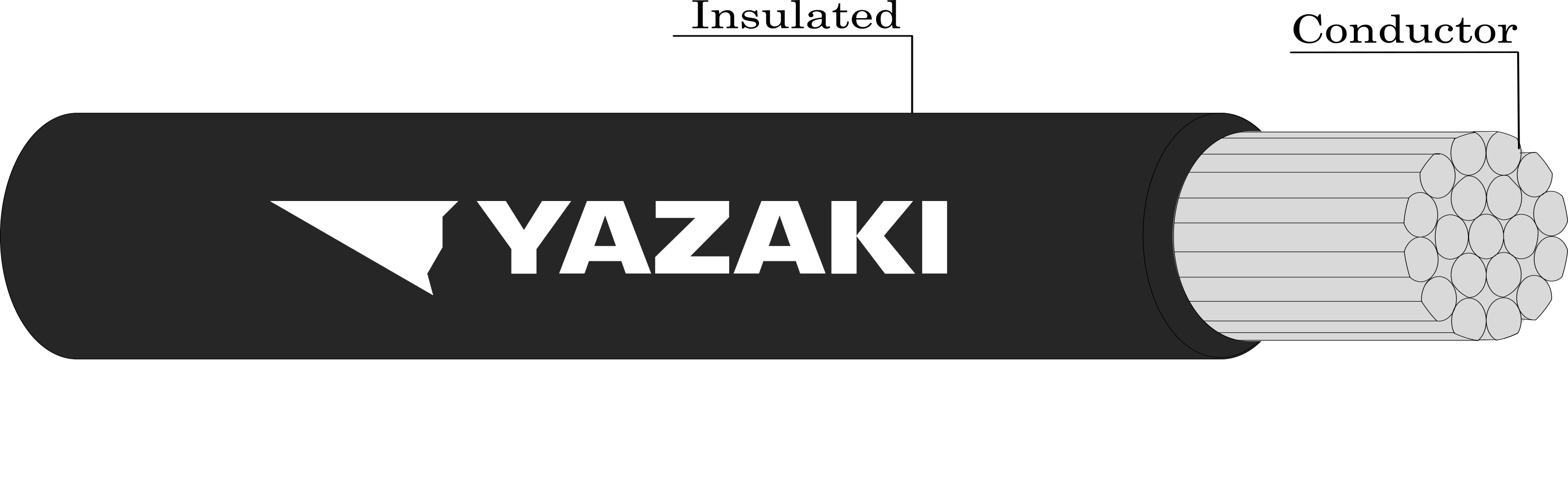

THWA-C

750 V 70°C COMPACTED ALUMINIUM CONDUCTOR PVC INSULATED, SINGLE CORE

DOWNLOAD FILE

CONDUCTOR

Compacted stranded hard drawn aluminium wires

INSULATION

Black polyvinyl chloride (PVC)

CLASSIFICATION

Maximum conductor temperature 70°C

Circuit voltage not exceeding 750 Volts

TESTING VOLTAGE

2,500 Volts

REFERENCE STANDARD

TIS 293-2541, Table 1

APPLICATION

For low voltage overhead distribution line

FD-0.6/1KV-CV

0.6/1kV 90°C CROSS-LINKED POLYETHYLENE INSULATED PVC SHEATHED FLAME RETARDANT POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Non-compacted and compacted round annealed copper

INSULATION

Cross-linked Polyethylene (XLPE)

CORE IDENTIFICATION

Single-core : Natural (Translucent)

2 Core : Blue and Brown

3 Core : Brown, Black and Grey

4 Core : Blue, Brown, Black and Grey

Other colors are available on customer request

OUTER SHEATH

Black flame retardant polyvinyl chloride (PVC/ST2)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 Volts

REFERENCE STANDARD

IEC 60502-1, IEC 60228, IEC 60332-1, IEC 60332-3-24 (Cat.C)

APPLICATION

For installation exposed or in raceway, wet or dry location, or direct burial in ground

YK FD-0.6/1KV-CV

0.6/1 kV 90 °C CROSS-LINKED POLYETHYLENE INSULATED PVC SHEATHED PVC SHEATHED FLAME RETARDANT SUPER SOFT POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Non-compacted and compacted round annealed copper

INSULATION

Cross-linked Polyethylene (XLPE)

CORE IDENTIFICATION

Single-core : Natural (Translucent)

2 Core : Blue and Brown

3 Core : Brown, Black and Grey

4 Core : Blue, Brown, Black and Grey

Other colors are available on customer request

OUTER SHEATH

Black flame retardant polyvinyl chloride (PVC/ST2)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 Volts

REFERENCE STANDARD

IEC 60502-1, IEC 60228, IEC 60332-1, IEC 60332-3-24 (Cat.C)

APPLICATION

For installation exposed or in raceway, wet or dry location, or direct burial in ground

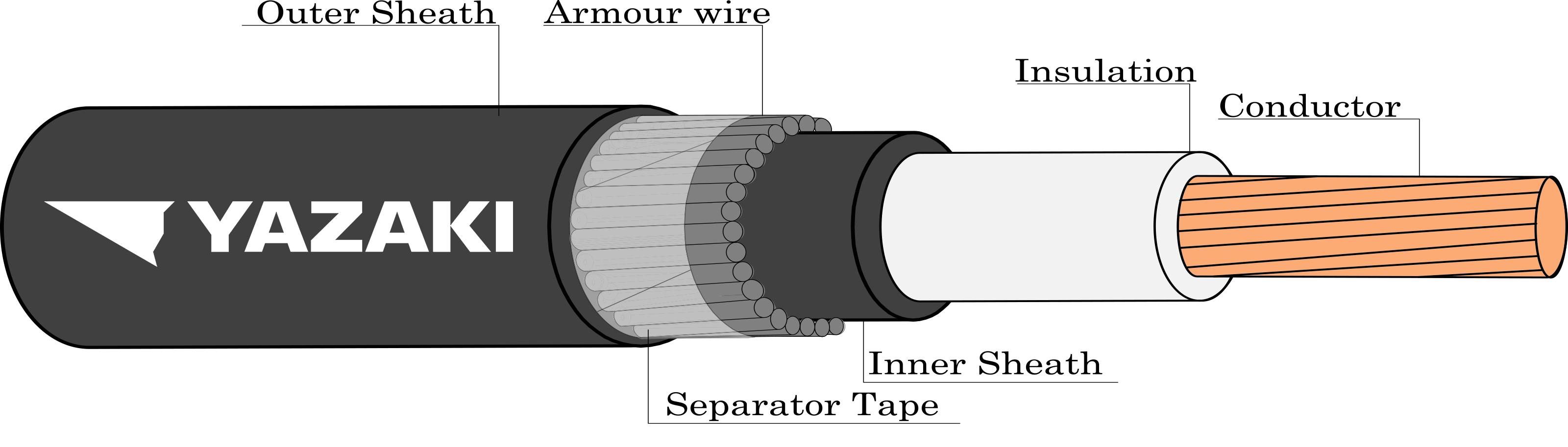

FD-0.6/1KV-CV-AWA

0.6/1(1.2)kV 90 °C CROSS -LINKED POLYETHYLENE INSULATED PVC SHEATHED, WITH ALUMINIUM WIRE ARMORED FLAME RETARDANT POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Non-compacted and compacted round annealed copper

INSULATION

Cross-linked Polyethylene (XLPE)

CORE IDENTIFICATION

Single-core : Natural (Translucent)

ARMOUR

Aluminium wires

OUTER SHEATH

Black flame retardant polyvinyl chloride (PVC/ST2)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 Volts

REFERENCE STANDARD

IEC 60502-1, IEC 60228, IEC 60332-1, IEC 60332-3-24(CAT.C)

APPLICATION

For installation exposed or in raceway, wet or dry location, or direct burial in ground

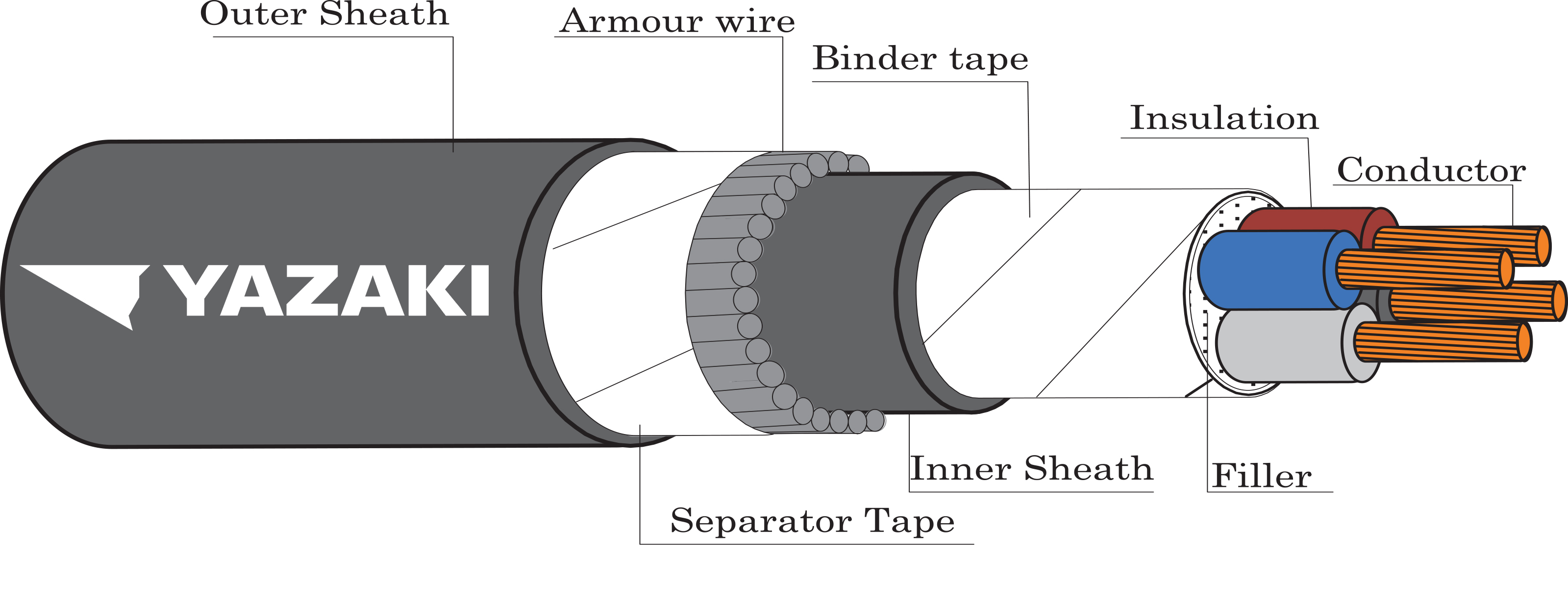

FD-0.6/1 KV-CV-SWA

0.6/1 KV 90°C CROSS-LINKED POLYETHYLENE INSULATED PVC SHEATHED, WITH GALVANIZED STEEL WIRES ARMORED POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Non-compacted and compacted stranded annealed copper

INSULATION

Cross-linked Polyethylene (XLPE)

CORE IDENTIFICATION

2 Core : Blue and Brown

3 Core : Brown, Black and Grey

4 Core : Blue, Brown, Black and Grey

Other colors are available on customer request

INNER SHEATH

Black polyvinyl chloride (PVC)

ARMOUR

Galvanized Steel Wires

OUTER SHEATH

Black Flame retardant polyvinyl chloride (PVC/ST2)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 Volts

REFERENCE STANDARD

IEC 60502-1, IEC 60228, IEC 60332-1,

IEC 60332-3-24 (Cat.C)

APPLICATION

For installation exposed or in raceway, wet or dry location, or direct burial in ground

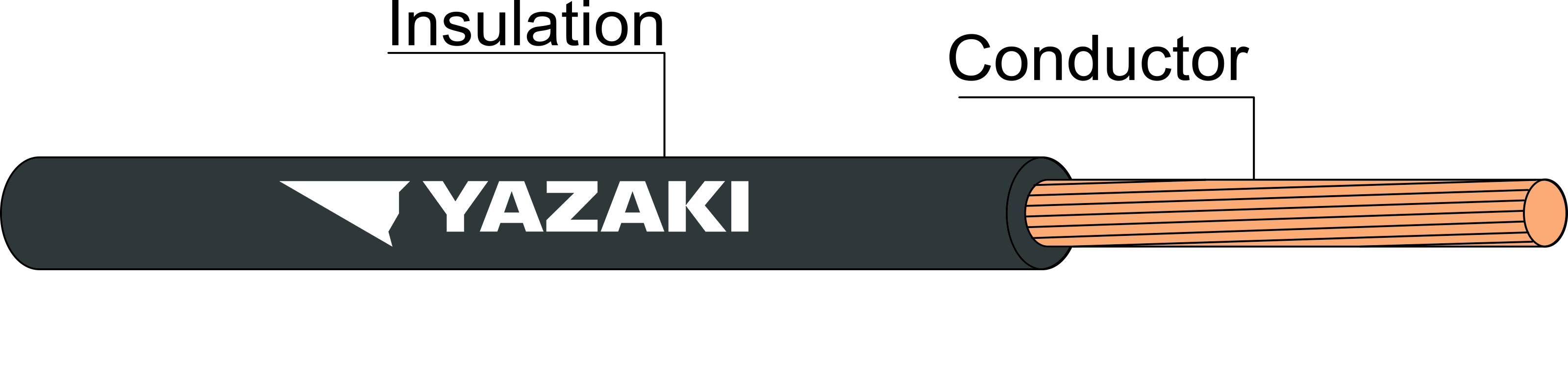

0.6/1KV-FRLH-IE

600/1000 V 90°C CROSS-LINKED POLYETHYLENE INSULATED FLAME RETARDANT WITH LOW SMOKE AND ZERO HALOGEN POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Non-Compacted and compacted round annealed copper

INSULATION

Flame retardant Low smoke and halogen free Cross-linked polyethylene (LSHF-XLPE:EI5)

CORE IDENTIFICATION

Single-Cores: Black or Orange

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 V

REFERENCE STANDARD

Construction : BS EN 50525-3-41

Flame retardant : BS EN 60332-1-2

BS EN IEC 60332-3-22 Category A

BS EN IEC 60332-3-23 Category B

BS EN IEC 60332-3-24 Category C

Acid gas emission : BS EN 60754-1, BS EN 60754-2

Smoke emission : BS EN 61034-2

Non-toxic gases : Defence standard 02-713

APPLICATION

For Fixed installation in electrical cabinet, conduit and wireway which provide flame retardant, low smoked and non toxic emission under fire

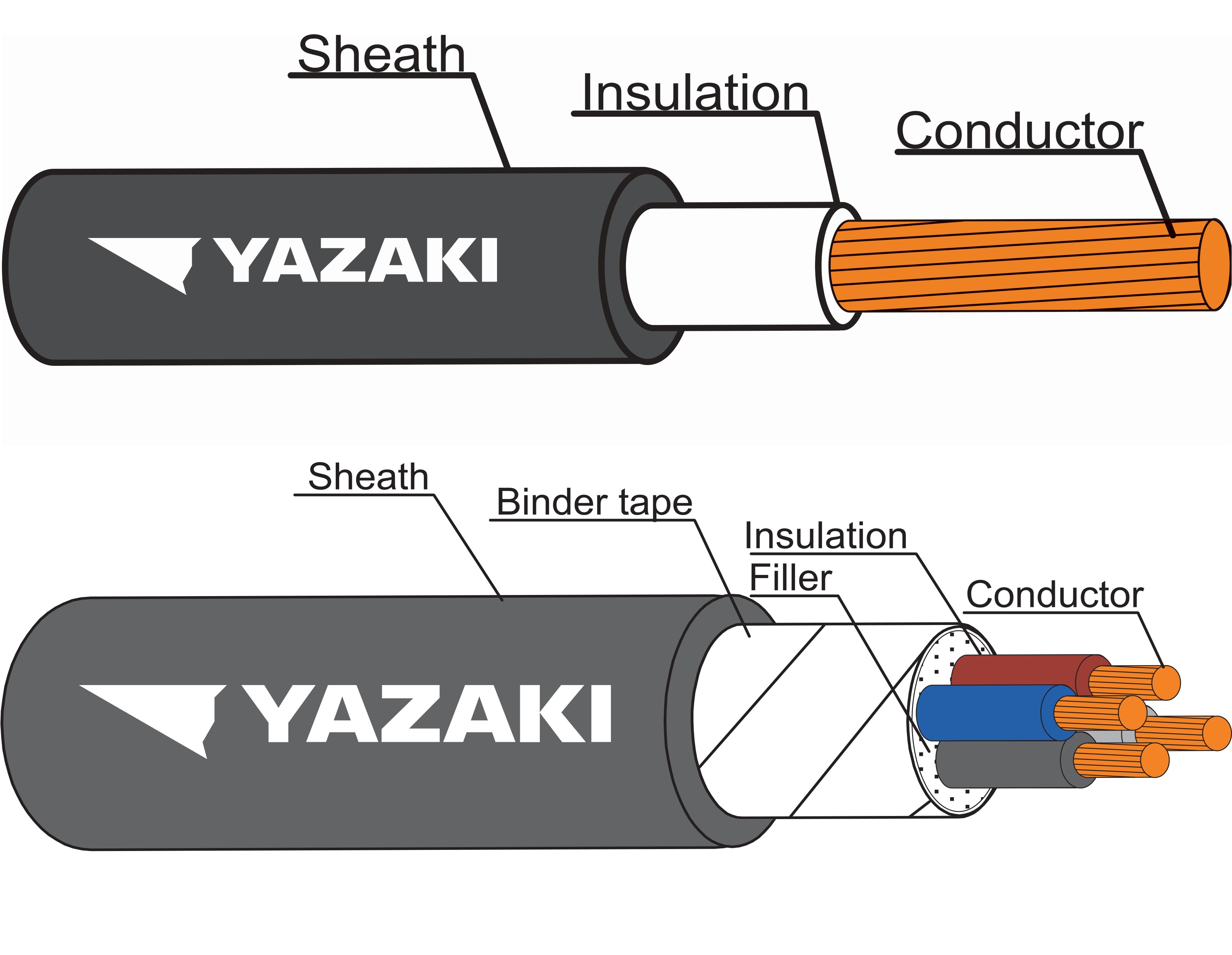

FDLH-0.6/1KV-CE

0.6/1kV 90°C CROSS-LINKED POLYETHYLENE INSULATED POLYOLEFIN SHEATHED FLAME RETARDANT WITH LOW SMOKE AND ZERO HALOGEN POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Non-Compacted and compacted round annealed copper

INSULATION

Cross-Linked polyethylene(XLPE)

CORE IDENTIFICATION

Single-core : Natural (Translucent)

2 Core : Blue and Brown

3 Core : Brown, Black and Grey

4 Core : Blue, Brown, Black and Grey

OUTER SHEATH

Black Low smoke and zero halogen flame retardant polyolefin (ST8)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 V

REFERENCE STANDARD

Construction : IEC 60502-1

Flame retardant : BS EN 60332-1-2

BS EN IEC 60332-3-22 Category A

BS EN IEC 60332-3-23 Category B

BS EN IEC 60332-3-24 Category C

Acid gas emission : BS EN 60754-1, BS EN 60754-2

Smoke emission : BS EN 61034-2

Non-toxic gases : Defence standard 02-713

APPLICATION

For Fixed installation in electrical cabinet, conduit and wireway which provide flame retardant, low smoked and non toxic emission under fire

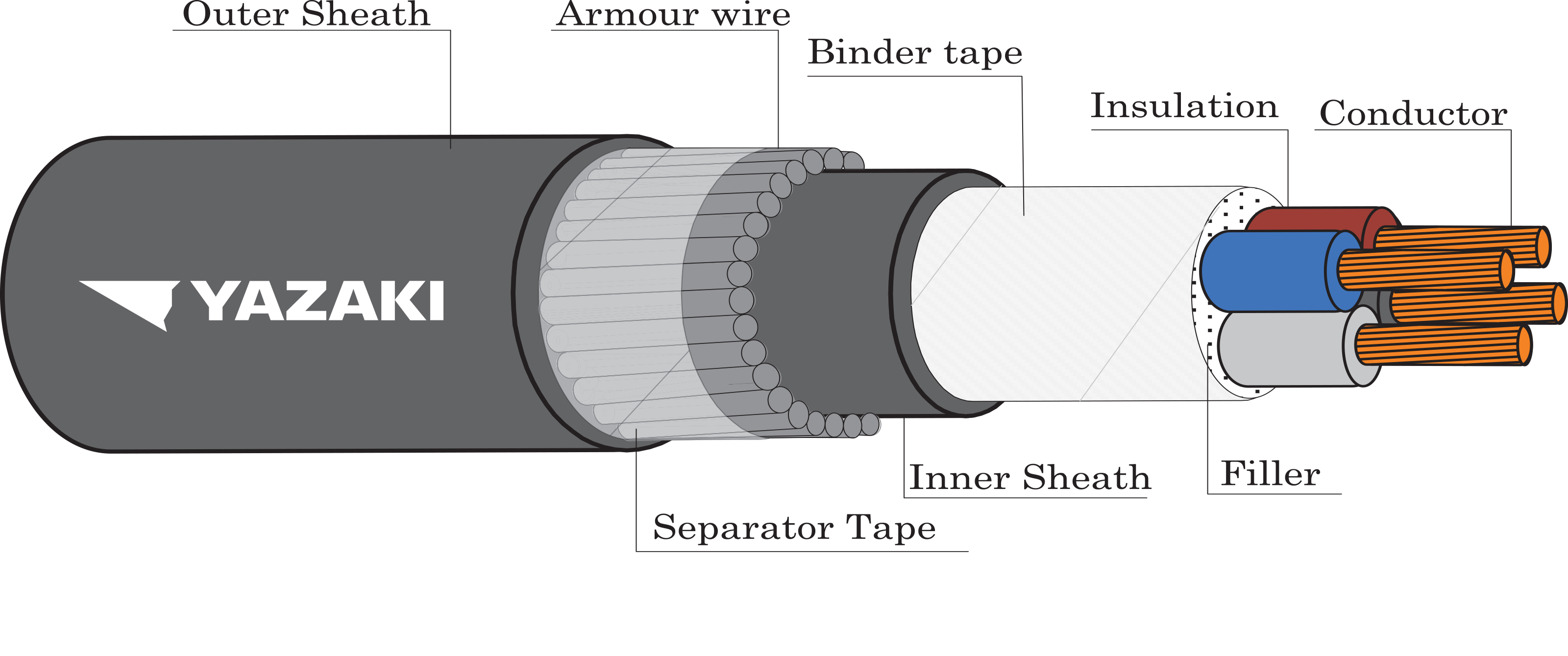

FDLH-0.6/1KV-CE-SWA

0.6/1kV 90°C ALUMINIUM CONDUCTOR CROSS-LINKED POLYETHYLENE INSULATED PVC SHEATHED, WITH GALVANIZED STEEL WIRE ARMORED FLAME RETARDANT POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Non-Compacted and compacted round annealed copper

INSULATION

Cross-Linked polyethylene(XLPE)

CORE IDENTIFICATION

2 Core : Blue and Brown

3 Core : Brown, Black and Grey

4 Core : Blue, Brown, Black and Grey

INNER SHEATH

Black Low smoke and zero halogen flame retardant polyolefin (ST8)

ARMOUR

Galvanized Steel Wires

OUTER SHEATH

Black Low smoke and zero halogen flame retardant polyolefin (ST8)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 V

REFERENCE STANDARD

Construction : IEC 60502-1, BS 6724

Flame retardant : BS EN 60332-1-2

BS EN IEC 60332-3-22 Category A

BS EN IEC 60332-3-23 Category B

BS EN IEC 60332-3-24 Category C

Acid gas emission : BS EN 60754-1, BS EN 60754-2

Smoke emission : BS EN 61034-2

Non-toxic gases : Defence standard 02-713

APPLICATION

For Fixed installation in electrical cabinet, conduit and wireway which provide flame retardant, low smoked and non toxic emission under fire

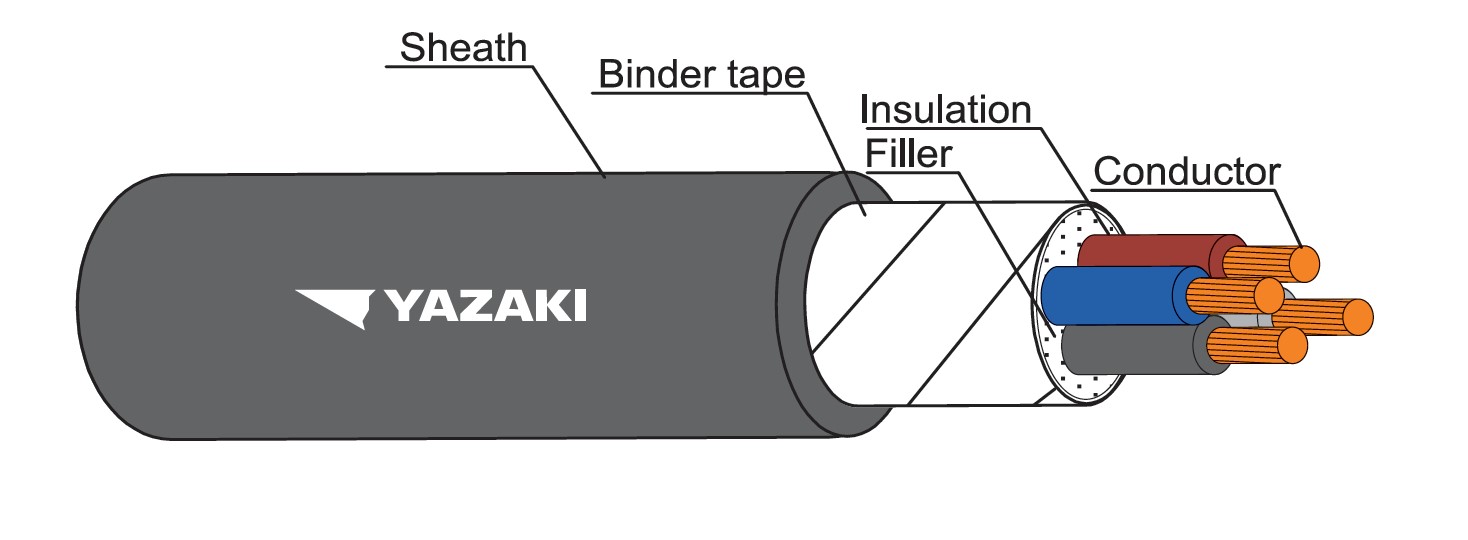

FDLH-0.6/1KV-CCE

0.6/1kV 90°C CROSS-LINKED POLYETHYLENE INSULATED POLYOLEFIN SHEATHED FLAME RETARDANT WITH LOW SMOKE AND ZERO HALOGEN CONTROL CABLE

DOWNLOAD FILE

CONDUCTOR

Stranded annealed copper

INSULATION

Cross-Linked polyethylene(XLPE)

CORE IDENTIFICATION

2 Cores : Blue and Brown

3 Cores : Brown, Black and Grey

4 Cores : Blue, Brown, Black and Grey

More than 4 Cores : Black with marking numbers, colored white, printed continuously throungout the whole length of insulated wires for the propose of core indentification.

OUTER SHEATH

Black Low smoke and zero halogen flame retardant polyolefin (ST8)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 V

REFERENCE STANDARD

Construction : IEC 60502-1

Flame retardant : BS EN 60332-1-2

BS EN IEC 60332-3-22 Category A

BS EN IEC 60332-3-23 Category B

BS EN IEC 60332-3-24 Category C

Acid gas emission : BS EN 60754-1, BS EN 60754-2

Smoke emission : BS EN 61034-2

Non-toxic gases : Defence standard 02-713

APPLICATION

For Fixed installation in electrical cabinet, conduit and wireway which provide flame retardant, low smoked and non toxic emission under fire

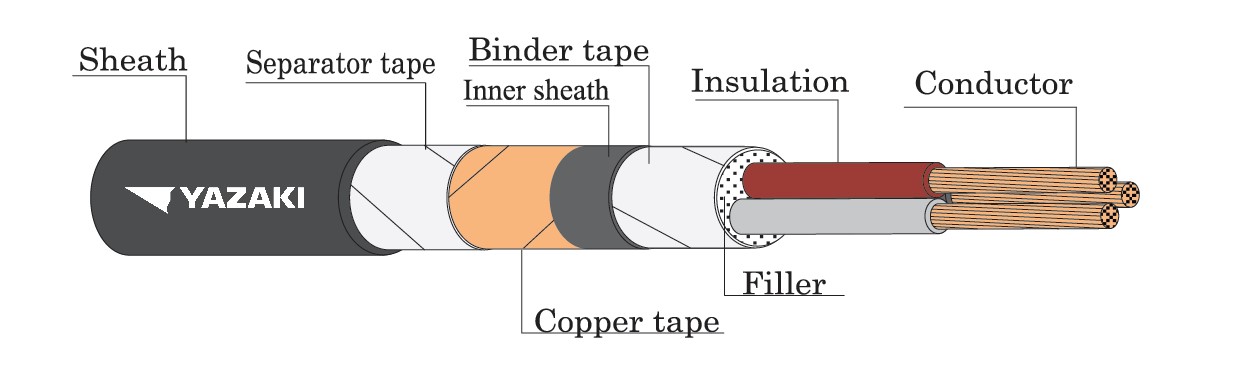

FDLH-0.6/1KV-CCE-S

0.6/1kV 90°C CROSS-LINKED POLYETHYLENE INSULATED POLYOLEFIN SHEATHED FLAME RETARDANT WITH LOW SMOKE AND ZERO HALOGEN SHIELED CONTROL CABLE

DOWNLOAD FILE

CONDUCTOR

Stranded annealed copper

INSULATION

Cross-Linked polyethylene(XLPE)

CORE IDENTIFICATION

2 Cores : Blue and Brown

3 Cores : Brown, Black and Grey

4 Cores : Blue, Brown, Black and Grey

More than 4 Cores : Black with marking numbers, colored white, printed continuously throungout the whole length of insulated wires for the propose of core indentification.

INNER SHEATH

Black Low smoke and zero halogen flame retardant polyolefin (ST8)

SHIELD

Copper tape

OUTER SHEATH

Black Low smoke and zero halogen flame retardant polyolefin (ST8)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 V

REFERENCE STANDARD

Construction : IEC 60502-1, BS 6724

Flame retardant : BS EN 60332-1-2

BS EN IEC 60332-3-22 Category A

BS EN IEC 60332-3-23 Category B

BS EN IEC 60332-3-24 Category C

Acid gas emission : BS EN 60754-1, BS EN 60754-2

Smoke emission : BS EN 61034-2

Non-toxic gases : Defence standard 02-713

APPLICATION

For Fixed installation in electrical cabinet, conduit and wireway which provide flame retardant, low smoked and non toxic emission under fire

FS/LH-0.6/1KV-XLPE (C)

600/1000V 90°C MICA TAPE CROSS-LINKED POLYETHYLENE INSULATED FLAME RETARDANT WITH LOW SMOKE AND ZERO HALOGEN POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Non-Compacted and compacted round annealed copper

FIRE BARRIER TAPE

Mica tape

INSULATION

Flame retardant Low smoke and halogen free Cross-linked polyethylene (LSHF-XLPE:EI5)

CORE IDENTIFICATION

Single-core : Orange

OUTER SHEATH

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 V

REFERENCE STANDARD

Construction : BS EN 50525-3-41

Circuit integrity : BS 6387 Category C, W, Z

Flame retardant : BS EN 60332-1-2

BS EN IEC 60332-3-22 Category A

BS EN IEC 60332-3-23 Category B

BS EN IEC 60332-3-24 Category C

Acid gas emission : BS EN 60754-1, BS EN 60754-2

Smoke emission : BS EN 61034-2

Non-toxic gases : Defence standard 02-713

APPLICATION

For Fixed installation in electrical cabinet, conduit, trench and tray which provide flame retardant, low smoked and corrosive gases properties and main circuit integrity under fire.

FS-FDLH-0.6/1KV-CE

0.6/1kV 90°C MICA TAPE CROSS-LINKED POLYETHYLENE INSULATED POLYOLEFIN SHEATHED FIRE RESISTANCE FLAME RETARDANT WITH LOW SMOKE AND ZERO HALOGEN POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Non-Compacted and compacted round annealed copper

FIRE BARRIER TAPE

Mica tape

INSULATION

Cross-Linked polyethylene(XLPE)

CORE IDENTIFICATION

Single-core : Natural (Translucent)

2 Core : Blue and Brown

3 Core : Brown, Black and Grey

4 Core : Blue, Brown, Black and Grey

OUTER SHEATH

Orange Low smoke and zero halogen flame retardant polyolefin (ST8)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 V

REFERENCE STANDARD

Construction : IEC 60502-1

Circuit integrity : BS 6387 Category C, W, Z

Flame retardant : BS EN 60332-1-2

BS EN IEC 60332-3-22 Category A

BS EN IEC 60332-3-23 Category B

BS EN IEC 60332-3-24 Category C

Acid gas emission : BS EN 60754-1, BS EN 60754-2

Smoke emission : BS EN 61034-2

Non-toxic gases : Defence standard 02-713

APPLICATION

For Fixed installation in electrical cabinet, conduit, trench and tray which provide flame retardant, low smoked and corrosive gases properties and main circuit integrity under fire.

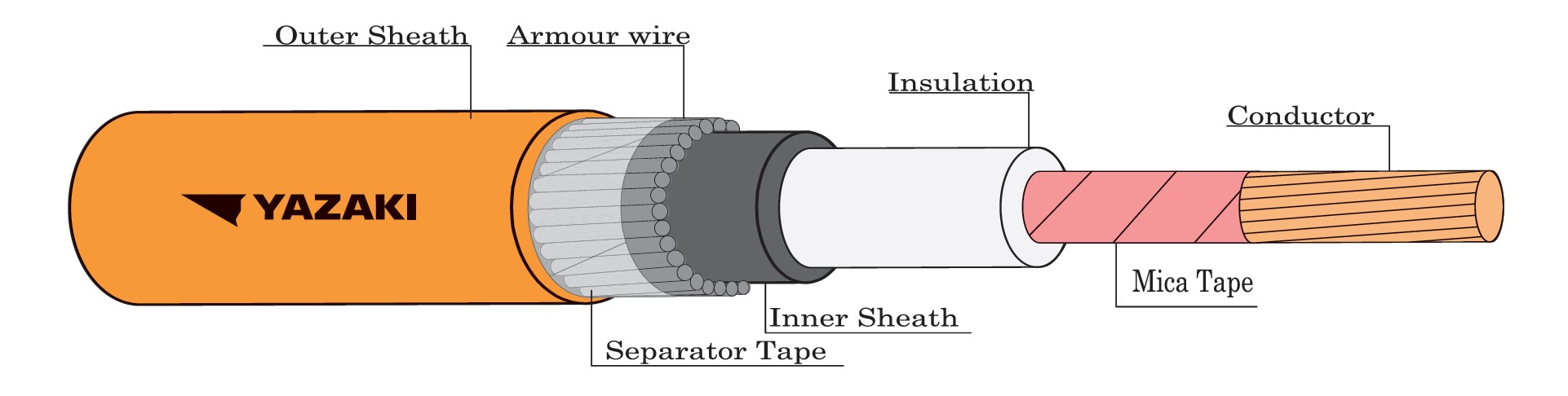

FS/FDLH-0.6/1KV-CE-AWA

0.6/1kV 90°C MICA TAPE CROSS-LINKED POLYETHYLENE INSULATED POLYOLEFIN SHEATHED, WITH ALUMINIUM WIRE ARMORED FLAME RETARDANT, LOW SMOKE AND ZERO HALOGEN POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Non-Compacted and compacted round annealed copper

FIRE BARRIER TAPE

Mica tape

INSULATION

Cross-Linked polyethylene(XLPE)

CORE IDENTIFICATION

Single-core : Natural (Translucent)

INNER SHEATH

Black Low smoke and zero halogen flame retardant polyolefin (ST8)

ARMOUR

Aluminium wires

OUTER SHEATH

Orange Low smoke and zero halogen flame retardant polyolefin (ST8)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 V

REFERENCE STANDARD

Construction : IEC 60502-1

Circuit integrity : BS 6387 Category C, W, Z

Flame retardant : BS EN 60332-1-2

BS EN IEC 60332-3-22 Category A

BS EN IEC 60332-3-23 Category B

BS EN IEC 60332-3-24 Category C

Acid gas emission : BS EN 60754-1, BS EN 60754-2

Smoke emission : BS EN 61034-2

APPLICATION

For Fixed installation in electrical cabinet, conduit, trench and tray which provide flame retardant, low smoked and corrosive gases properties and main circuit integrity under fire.

FS/FDLH-0.6/1KV-CE-SWA

0.6/1kV 90°C MICA TAPE CROSS-LINKED POLYETHYLENE INSULATED POLYOLEFIN SHEATHED, WITH GALVANIZED STEEL WIRE ARMORED FLAME RETARDANT, LOW SMOKE AND ZERO HALOGEN POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Non-Compacted and compacted round annealed copper

FIRE BARRIER TAPE

Mica tape

INSULATION

Cross-Linked polyethylene(XLPE)

CORE IDENTIFICATION

2 Core : Blue and Brown

3 Core : Brown, Black and Grey

4 Core : Blue, Brown, Black and Grey

INNER SHEATH

Black Low smoke and zero halogen flame retardant polyolefin (ST8)

ARMOUR

Galvanized Steel Wires

OUTER SHEATH

Orange Low smoke and zero halogen flame retardant polyolefin (ST8)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 V

REFERENCE STANDARD

Construction : IEC 60502-1, BS 7846

Circuit integrity : BS 6387 Category C, W, Z

Flame retardant : BS EN 60332-1-2

BS EN IEC 60332-3-22 Category A

BS EN IEC 60332-3-23 Category B

BS EN IEC 60332-3-24 Category C

Acid gas emission : BS EN 60754-1, BS EN 60754-2

Smoke emission : BS EN 61034-2

APPLICATION

For Fixed installation in electrical cabinet, conduit, trench and tray which provide flame retardant, low smoked and corrosive gases properties and main circuit integrity under fire.

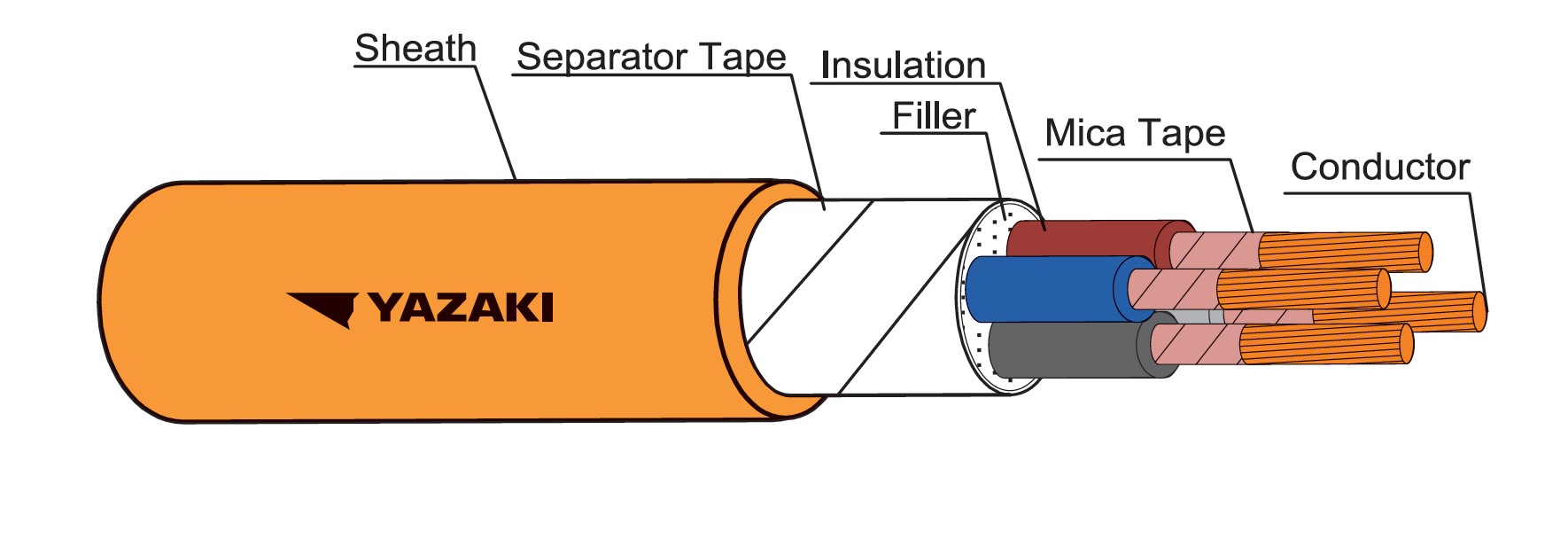

FS/FDLH-0.6/1KV-CCE

0.6/1kV 90°C MICA TAPE CROSS-LINKED POLYETHYLENE INSULATED POLYOLEFIN SHEATHED FIRE RESISTANT FLAME RETARDANT WITH LOW SMOKE AND ZERO HALOGEN CONTROL CABLE

DOWNLOAD FILE

CONDUCTOR

Stranded annealed copper

FIRE BARRIER TAPE

Mica tape

INSULATION

Cross-Linked polyethylene(XLPE)

CORE IDENTIFICATION

2 Cores : Blue and Brown

3 Cores : Brown, Black and Grey

4 Cores : Blue, Brown, Black and Grey

More than 4 Cores : Black with marking numbers, colored white, printed continuously throungout the whole length of insulated wires for the propose of core indentification.

OUTER SHEATH

Orange Low smoke and zero halogen flame retardant polyolefin (ST8)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 V

REFERENCE STANDARD

Construction : IEC 60502-1

Circuit integrity : BS 6387 Category C, W, Z

Flame retardant : BS EN 60332-1-2

BS EN IEC 60332-3-22 Category A

BS EN IEC 60332-3-23 Category B

BS EN IEC 60332-3-24 Category C

Acid gas emission : BS EN 60754-1, BS EN 60754-2

Smoke emission : BS EN 61034-2

APPLICATION

For Fixed installation in electrical cabinet, conduit, trench and tray which provide flame retardant, low smoked and corrosive gases properties and main circuit integrity under fire.

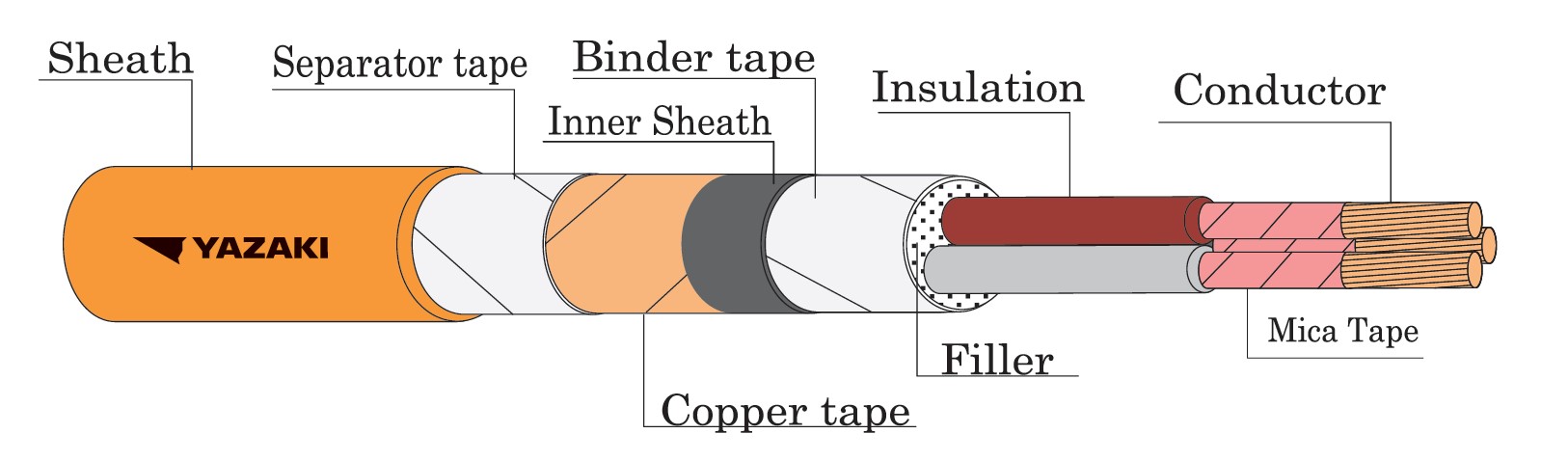

FS/FDLH-0.6/1KV-CCE-S

0.6/1kV 90°C MICA TAPE CROSS-LINKED POLYETHYLENE INSULATED POLYOLEFIN SHEATHED FIRE RESISTANT FLAME RETARDANT WITH LOW SMOKE AND ZERO HALOGEN SHIELED CONTROL CABLE

DOWNLOAD FILE

CONDUCTOR

Stranded annealed copper

FIRE BARRIER TAPE

Mica tape

INSULATION

Cross-Linked polyethylene(XLPE)

CORE IDENTIFICATION

2 Cores : Blue and Brown

3 Cores : Brown, Black and Grey

4 Cores : Blue, Brown, Black and Grey

More than 4 Cores : Black with marking numbers, colored white, printed continuously throungout the whole length of insulated wires for the propose of core indentification.

INNER SHEATH

Black Low smoke and zero halogen flame retardant polyolefin (ST8)

SHIELD

Copper tape

OUTER SHEATH

Orange Low smoke and zero halogen flame retardant polyolefin (ST8)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 V

REFERENCE STANDARD

Construction : IEC 60502-1

Circuit integrity : BS 6387 Category C, W, Z

Flame retardant : BS EN 60332-1-2

BS EN IEC 60332-3-22 Category A

BS EN IEC 60332-3-23 Category B

BS EN IEC 60332-3-24 Category C

Acid gas emission : BS EN 60754-1, BS EN 60754-2

Smoke emission : BS EN 61034-2

APPLICATION

For Fixed installation in electrical cabinet, conduit, trench and tray which provide flame retardant, low smoked and corrosive gases properties and main circuit integrity under fire.

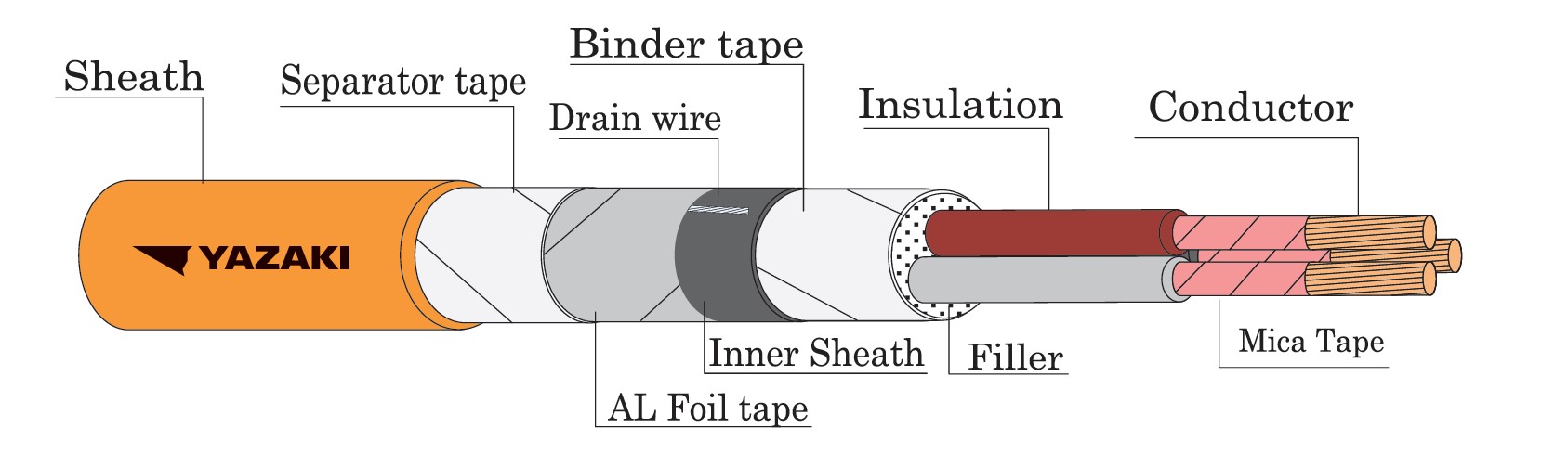

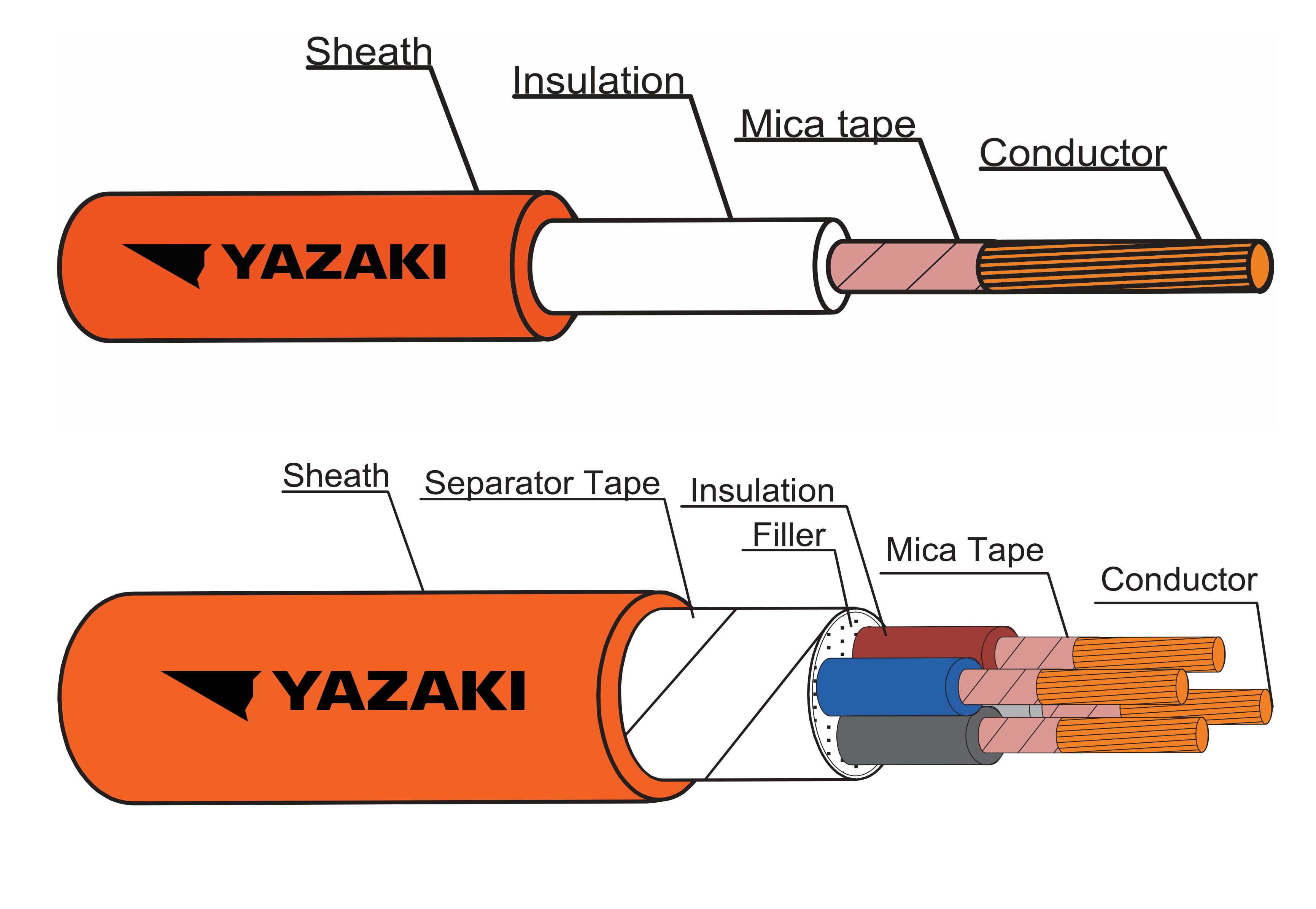

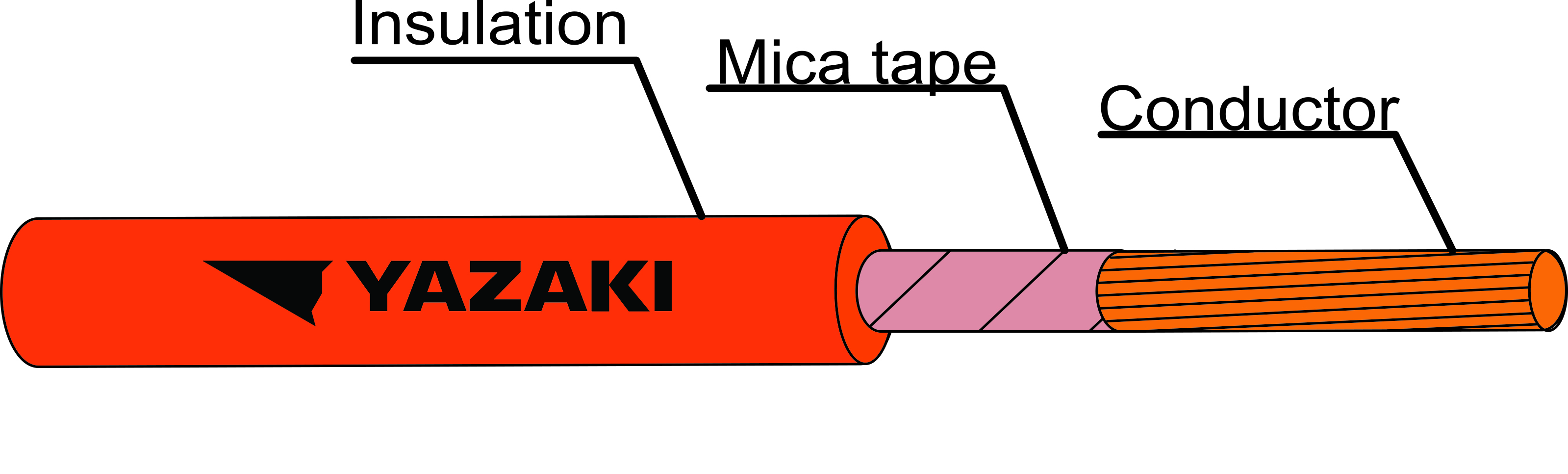

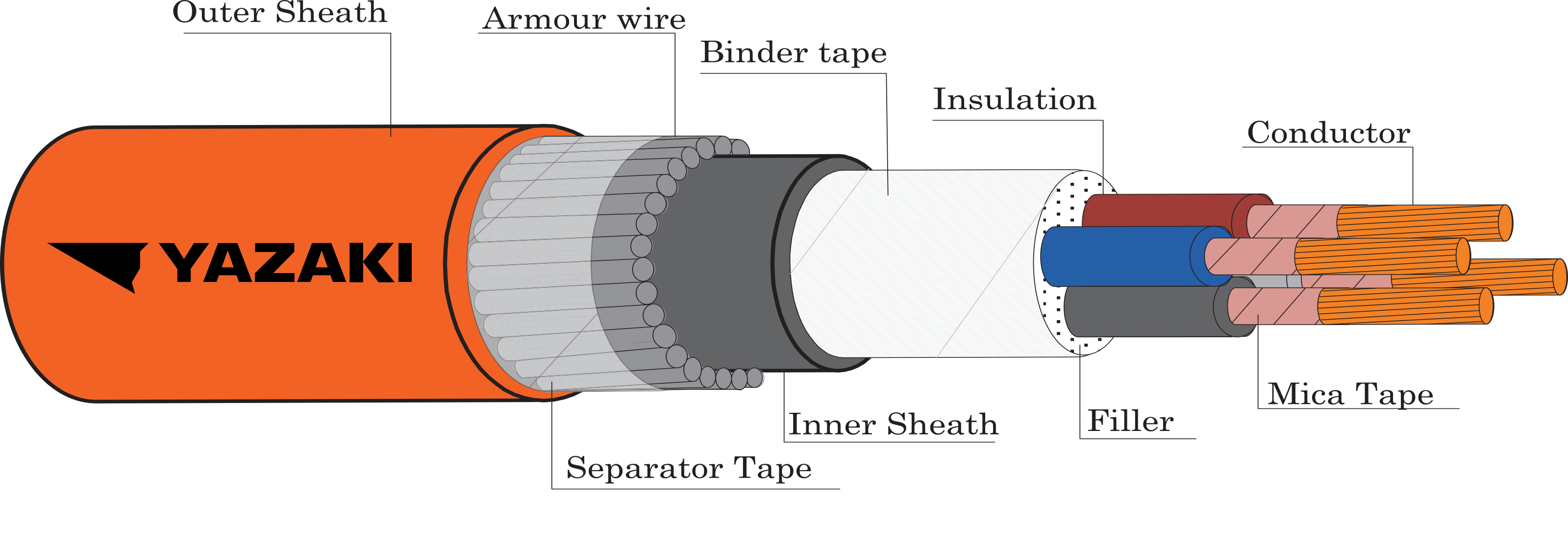

FS/FDLH-0.6/1KV-CCE-SLA

0.6/1kV 90°C MICA TAPE CROSS-LINKED POLYETHYLENE INSULATED POLYOLEFIN SHEATHED FIRE RESISTANT FLAME RETARDANT WITH LOW SMOKE AND ZERO HALOGEN SHIELED CONTROL CABLE

DOWNLOAD FILE

CONDUCTOR

Stranded annealed copper

FIRE BARRIER TAPE

Mica tape

INSULATION

Cross-Linked polyethylene(XLPE)

CORE IDENTIFICATION

2 Cores : Blue and Brown

3 Cores : Brown, Black and Grey

4 Cores : Blue, Brown, Black and Grey

More than 4 Cores : Black with marking numbers, colored white, printed continuously throungout the whole length of insulated wires for the propose of core indentification.

INNER SHEATH

Black Low smoke and zero halogen flame retardant polyolefin (ST8)

SHIELD

Laminated aluminium boned with polyester tape and drain wire

OUTER SHEATH

Orange Low smoke and zero halogen flame retardant polyolefin (ST8)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 1,200 Volts

RATED VOLTAGE

600 Volts between Line to Earth

1,000 Volts between Line to Line

TESTING VOLTAGE

3,500 V

REFERENCE STANDARD

Construction : IEC 60502-1

Circuit integrity : BS 6387 Category C, W, Z

Flame retardant : BS EN 60332-1-2

BS EN IEC 60332-3-22 Category A

BS EN IEC 60332-3-23 Category B

BS EN IEC 60332-3-24 Category C

Acid gas emission : BS EN 60754-1, BS EN 60754-2

Smoke emission : BS EN 61034-2

APPLICATION

For Fixed installation in electrical cabinet, conduit, trench and tray which provide flame retardant, low smoked and corrosive gases properties and main circuit integrity under fire.

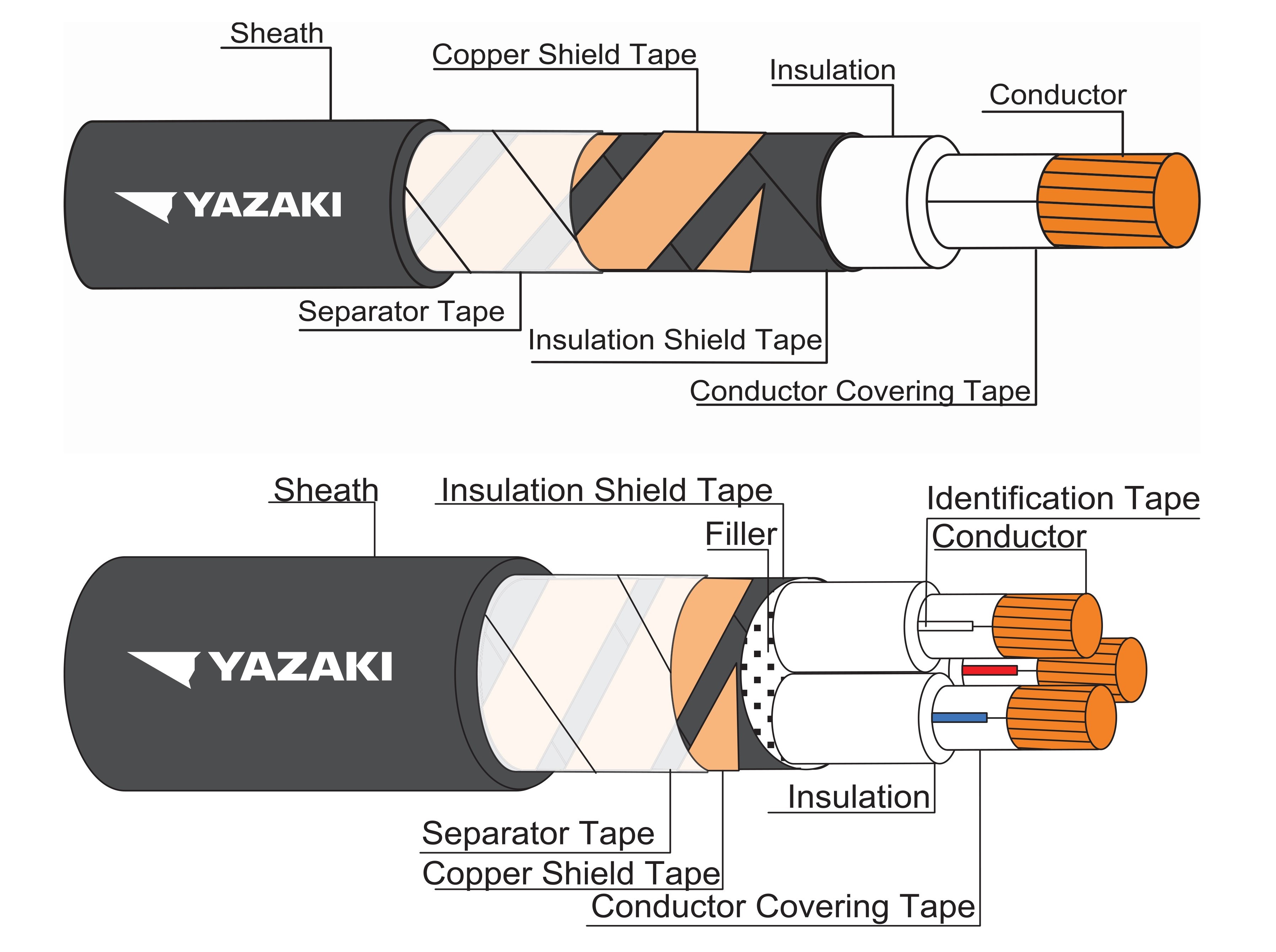

1.8/3 KV-CV

1.8/3 (3.6) kV 90°C CROSS-LINKED POLYETHYLENE INSULATED PVCSHEATHED POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Compacted round stranded annealed copper

INSULATION

Cross-Linked polyethylene (XLPE)

INSULATION SHIELD

Semi-conductive tape

CORE IDENTIFICATION

Single-core : Natural (Translucent)

3 core : White, Red and Blue

SHIELD

Copper tape

OUTER SHEATH

Black polyvinyl chloride (PVC/ST2)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 3,600 Volts

RATED VOLTAGE

1,800 Volts between Line to Earth

3,000 Volts between Line to Line

TESTING VOLTAGE

6,500 Volts

REFERENCE STANDARD

IEC 60502-1, IEC 60228, IEC 60332-1

APPLICATION

For installation exposed or in raceway, wet or dry location, or direct burial in ground

3.6/6 KV-CV

3.6/6 (7.2) kV 90°C CROSS-LINKED POLYETHYLENE INSULATED ANDPVC SHEATHED POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Compacted round stranded annealed copper

INSULATION

Cross-Linked polyethylene (XLPE)

INSULATION SHIELD

Semi-conductive Cross-linked polyethylene compound

CORE IDENTIFICATION

Single-core : Natural (Translucent)

3 core : White, Red and Blue

SHIELD

Copper tape

OUTER SHEATH

Black polyvinyl chloride (PVC/ST2)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 7,200 Volts

RATED VOLTAGE

3,600 Volts between Line to Earth

6,000 Volts between Line to Line

TESTING VOLTAGE

12,500 Volts

REFERENCE STANDARD

IEC 60502-1, IEC 60228, IEC 60332-1

APPLICATION

For installation exposed or in raceway, wet or dry location, or direct burial in ground

6/10 KV-CV

6/10 (12) kV 90°C CROSS-LINKED POLYETHYLENE INSULATED AND PVC SHEATHED POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Compacted round stranded annealed copper

INSULATION

Cross-Linked polyethylene (XLPE)

INSULATION SHIELD

Semi-conductive Cross-linked polyethylene compound

CORE IDENTIFICATION

Single-core : Natural (Translucent)

3 core : White, Red and Blue

SHIELD

Copper tape

OUTER SHEATH

Black polyvinyl chloride (PVC/ST2)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 12,000 Volts

RATED VOLTAGE

6,000 Volts between Line to Earth

10,000 Volts between Line to Line

TESTING VOLTAGE

21,000 Volts

REFERENCE STANDARD

IEC 60502-1, IEC 60228, IEC 60332-1

APPLICATION

For installation exposed or in raceway, wet or dry location, or direct burial in ground

8.7/15KV-CV

8.7/15 (17.5) kV 90°C CROSS-LINKED POLYETHYLENE INSULATED ANDPVC SHEATHED POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Compacted round stranded annealed copper

INSULATION

Cross-Linked polyethylene (XLPE)

INSULATION SHIELD

Semi-conductive Cross-linked polyethylene compound

CORE IDENTIFICATION

Single-core : Natural (Translucent)

3 core : White, Red and Blue

SHIELD

Copper tape

OUTER SHEATH

Black polyvinyl chloride (PVC/ST2)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 17,500 Volts

RATED VOLTAGE

8,700 Volts between Line to Earth

15,000 Volts between Line to Line

TESTING VOLTAGE

30,500 Volts

REFERENCE STANDARD

IEC 60502-1, IEC 60228, IEC 60332-1

APPLICATION

For installation exposed or in raceway, wet or dry location, or direct burial in ground

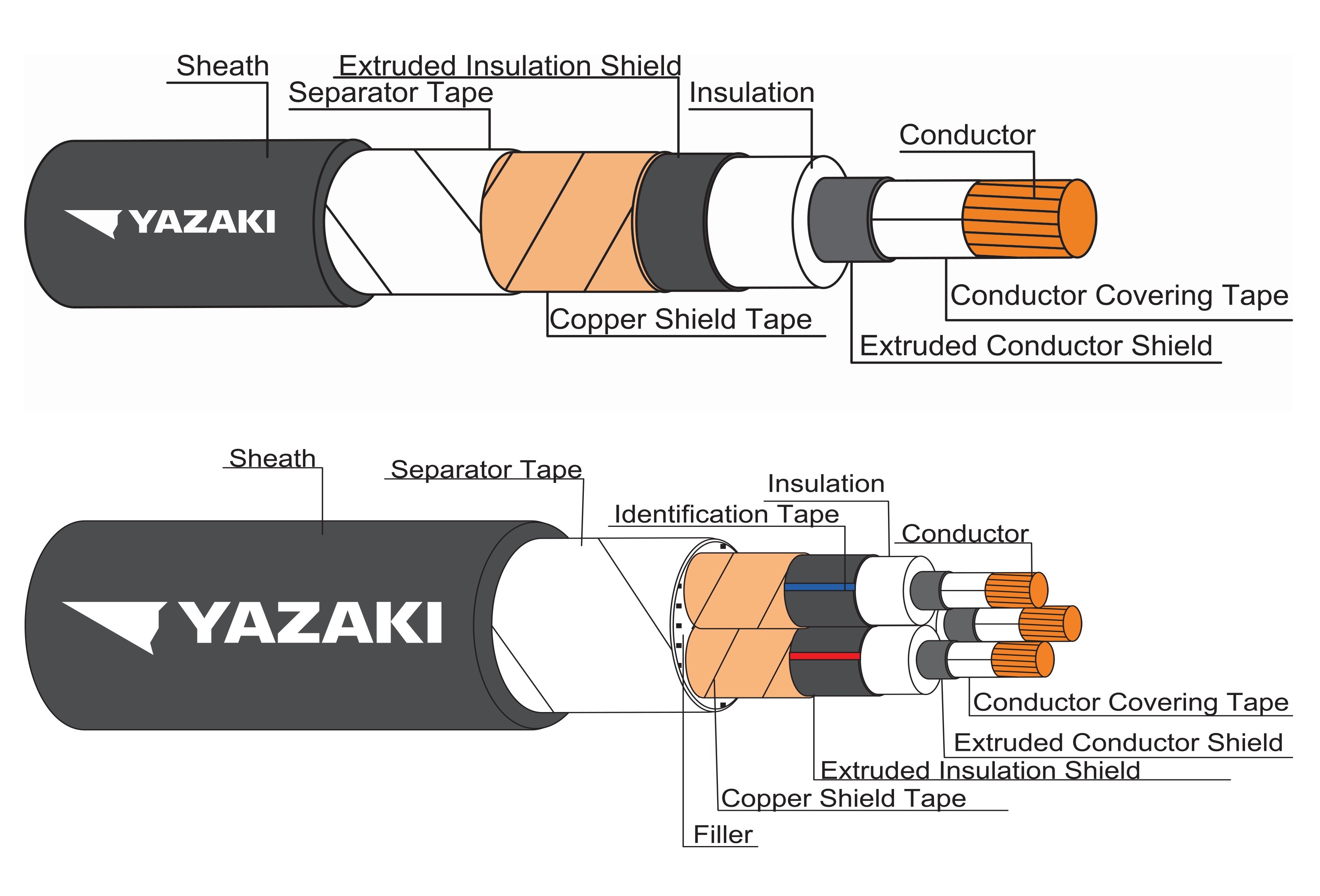

12/20 KV-CV

12/20 (24) kV 90°C CROSS-LINKED POLYETHYLENE INSULATED ANDPVC SHEATHED POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Compacted round stranded annealed copper

INSULATION

Cross-Linked polyethylene (XLPE)

INSULATION SHIELD

Semi-conductive Cross-linked polyethylene compound

CORE IDENTIFICATION

Single-core : Natural (Translucent)

3 core : White, Red and Blue

SHIELD

Copper tape

OUTER SHEATH

Black polyvinyl chloride (PVC/ST2)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 24,000 Volts

RATED VOLTAGE

12,000 Volts between Line to Earth

24,000 Volts between Line to Line

TESTING VOLTAGE

42,000 Volts

REFERENCE STANDARD

IEC 60502-1, IEC 60228, IEC 60332-1

APPLICATION

For installation exposed or in raceway, wet or dry location, or direct burial in ground

18/30 KV-CV

18/30 (36) kV 90°C CROSS-LINKED POLYETHYLENEINSULATED AND PVC SHEATHED POWER CABLE

DOWNLOAD FILE

CONDUCTOR

Compacted round stranded annealed copper

INSULATION

Cross-Linked polyethylene (XLPE)

INSULATION SHIELD

Semi-conductive Cross-linked polyethylene compound

CORE IDENTIFICATION

Single-core : Natural (Translucent)

3 core : White, Red and Blue

SHIELD

Copper tape

OUTER SHEATH

Black polyvinyl chloride (PVC/ST2)

CLASSIFICATION

Maximum conductor temperature 90°C

Circuit voltage not exceeding 36,000 Volts

RATED VOLTAGE

18,000 Volts between Line to Earth

30,000 Volts between Line to Line

TESTING VOLTAGE

63,000 Volts

REFERENCE STANDARD

IEC 60502-1, IEC 60228, IEC 60332-1

APPLICATION

For installation exposed or in raceway, wet or dry location, or direct burial in ground

BUILDING

Thai-Yazaki Electric Wire co., ltd.

ABOUT US

PRODUCT

DOWNLOAD
